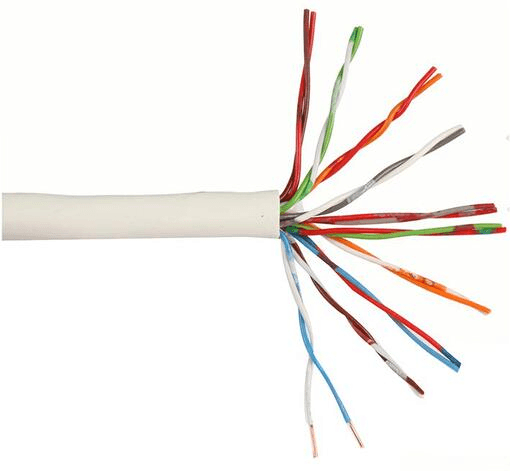

10 PAIR TELEPHONE CABLE SPECIFICATIONS AND DETAILS

Overview

This armoured telephone cables are used for external connection of telephone systems and other communications equipment where the added protection of steel wire armouring is needed. This cable is ideally suited for direct burial.

The tough, durable polyethylene or external grade PVC forms the outer sheath, which resists UV and sunlight. The cores are coated with petroleum jelly to protect them from moisture ingress.

This external grade armoured telephone cable is available in 2, 5, 10, 20, 30, 50 or 100 pair versions, in either 0.5mm or 0.9mm conductor sizes.

External armoured cable primarily designed for the interconnection of telephone equipment. Suitable for direct burial. UV and moisture resistant. In addition, you can use these cables to interconnect other communication and control equipment or for low-level signaling applications.

Highlights

• Conductor : Solid class 1 solid annealed copper conductor according to BS EN 60228 (previously BS 6360), Resistance to CW specification
• Insulation : CEL-PE (Cellular Polyethylene)
• Filler : Petroleum jelly
• Separator : Clupak paper tape (with rip cord)
• Bedding : PE (Polyethylene) according to BS 50290-1
• Armour : GSWA (Galvanized Steel Wire Armour), Sheath, PE (Polyethylene)
• No of Pairs : 10
• Colours of Pairs : 1 pair : White/Blue, 2 pair : White/Orange, 3 pair : White/Green, 4 pair : White/Brown, 5 pair : White/Grey, 6 pair : Red/Blue, 7 pair : Red/Orange, 8 pair : Red/Green, 9 pair : Red/Brown, 10 pair : Red/Grey.
• Nominal Diameter of conductors : 0.5mm
