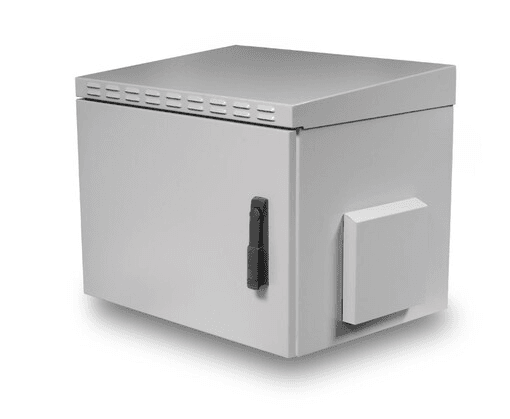

12U Outdoor 600mm X 600mm Data Wall Mount Cabinet
Original price was: KSh33,000.00.KSh32,000.00Current price is: KSh32,000.00. + VAT
KEY FEATURES
- IP65 Weatherproof,dustproof
- 12U Specification
- 24 inches width and 24 inches depth
- Adjustable 19inch rackmount rails
- Wall mount or Pole mount Options
Buy Online at Best Prices in Nairobi Kenya
12U OUTDOOR 600MM X 600MM DATA WALL MOUNT CABINET SPECIFICATIONS AND DETAILS
Overview
12U Wall mount Outdoor Cabinet are designed to protect your sensitive network equipment from harsh environments. With waterproof and dustproof features to protect it from the elements, while still keeping the equipment secure outside.
We engineer our 12U Wall Mount Outdoor Cabinets to provide robust protection for your sensitive network equipment in challenging environments. These cabinets offer a combination of waterproof and dustproof features, thus your equipment remains covered from the harsh elements. Rest assured, your valuable network gear remains not only secure but also highly functional even in outdoor environments. Thanks to our innovative design.
Application
Provides a secure, climate controlled environment for any electronic equipment : Telecommunications, Wireless/Broadband, Fiber Optics, Backhaul, Base Station , Small Cell/DAS, Utility, Military, Trailer-based Communications, Wi-Fi, Flexible and Scalable
Technical Specification
| Compatiblity | |
| Rack Systems Compatible | Compatible with a variety of AZE’s rack accessory products to provide the ability to create a complete rack system |
| EIA-310 19in Rack Mounting Compatibility | Compatibility with all EIA-310 compliant 19″ equipment. |
| Function Design | |
| Fully welded design | Fully welded design for strength and durability |
| Harsh environment(Waterproof) | Rain hood and high-grade polyurethane door joint strip for waterproof features |
| Harsh environment(Dustproof) | No vented holes on the door |
| Cable access | Pre-cutting cable opening holes, with cable gromment or gland options |
| Equipment mounting rails | Equipment mounting rails provide EIA 19″ mounting space |
| Agility | |
| Adjustable mounting rails | 19″ mounting rails installed, can be adjusted in deep to adapt devices |
| Ready to be installed | Fully assembly unit are ready for installation |
| Safety | |
| Electrical grounding | The front door are grounded to the frame of the enclosure. |
12U 600mm X 600mm cabinet Specification
| Environmental | |
| IP (Ingress Protection) Rating | IP65,NEMA 4,NEMA 4X |
| Working Temperature | -10～55℃ |
| Physical | |
| Color | GREY RAL7035 |
| Material | Cold-rolled steel (Galvanized steel/Aluminum/stainless steel/Color coated steel optional) |
| Unit Dimensions (WxDxH) | 23.62inches x 23.62inchesx15.74inches |
| Unit Weight | 66.78lbs. |
| Shipping Dimensions(WxDxH) | 26.78inchesx20.87inches x18.90inches |
| Shipping Weight | 72.95lbs. |
| Weight Capacity (static load) | 100lbs. |
| Electronics | |
| Cooling | N/A |
| Power | PDU(Basic or Smart),AC/DC Power,Built-in Power Optional |
| Sensors | Door Sensor/Water Sensor/Temperature & Humidity sensor/Smoke sensor/Tilt & Shock sensor |
| Monitoring | EMS,KVM Switches,Smart PDU |
| Certifications | |
| Approvals | UL Standard 60950-1/CSA 22.2C, EN60529/10.91,EIA/ECA-310-E, IEC 294-2, RoHS |
| Safety | CE |
| Warranty | |
| Standard warranty | 1 Year |
