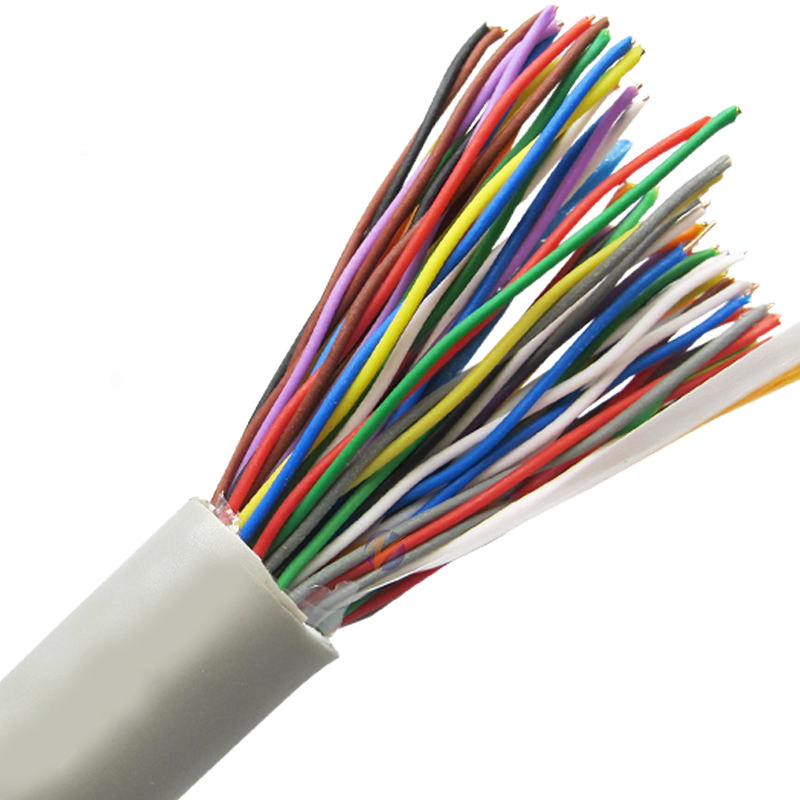

20 PAIR TELEPHONE CABLE SPECIFICATIONS AND DETAILS

Overview

The armoured telephone cables are used for external connection of telephone systems and other communications equipment where the added protection of steel wire armouring is needed. This cable is ideally suited for direct burial.

Their outer sheath is made from tough, durable polyethylene or external grade PVC which is UV and sunlight resistant. The cores are bedded in petroleum jelly to protect against the ingress of moisture.

This external grade armoured telephone cable is available in 5, 10, 20, 50 or 100 pair versions, in either 0.5mm or 0.9mm conductor sizes.

External armoured cable primarily designed for the interconnection of telephone equipment. Suitable for direct burial. UV and moisture resistant. In addition, you can use these cables to interconnect other communication and control equipment or for low-level signalling applications.

Features

1. High Capacity: The 20 pair configuration of this cable allows you to manage and connect a significant number of telephone lines in a single, organized bundle. It is especially ideal for large installations, such as office buildings, data centers, or telecommunications hubs, which require numerous lines.
2. Clear Voice Transmission: Our telephone cable is engineered to deliver clear and interference-free voice transmission, ensuring that conversations remain crisp and intelligible. This is essential for both business communications and personal conversations.
3. Versatile Applications: This cable is suitable for a wide range of applications, including small office phone systems, large corporate telecommunications, multi-line residential setups, and more. Its high capacity and versatility make it a valuable addition to various settings.
4. High-Quality Construction: The manufacturer crafts the cable from top-quality materials, including durable conductors and insulation. They choose these components for their durability and resistance to external factors, which ensures the cable’s longevity and reliable performance.

Tech Specifications

• Conductor : Solid class 1 solid annealed copper conductor according to BS EN 60228 (previously BS 6360), Resistance to CW specification
• Insulation : CEL-PE (Cellular Polyethylene)
• Filler : Petroleum jelly
• Separator : Clupak paper tape (with rip cord)
• Bedding : PE (Polyethylene) according to BS 50290-1
• Armour : GSWA (Galvanized Steel Wire Armour), Sheath, PE (Polyethylene)
• No of Pairs : 20
• Colours of Pairs : 1 pair : White/Blue, 2 pair : White/Orange, 3 pair : White/Green, 4 pair : White/Brown, 5 pair : White/Grey
• Nominal Diameter of conductors : 0.5mm
• Pair configuration : 4 x 5 Pairs
• Diameter under armour : 12mm
• Nominal Overall Diameter : 17.2mm
• Nominal weight : 0.35kg per metre
