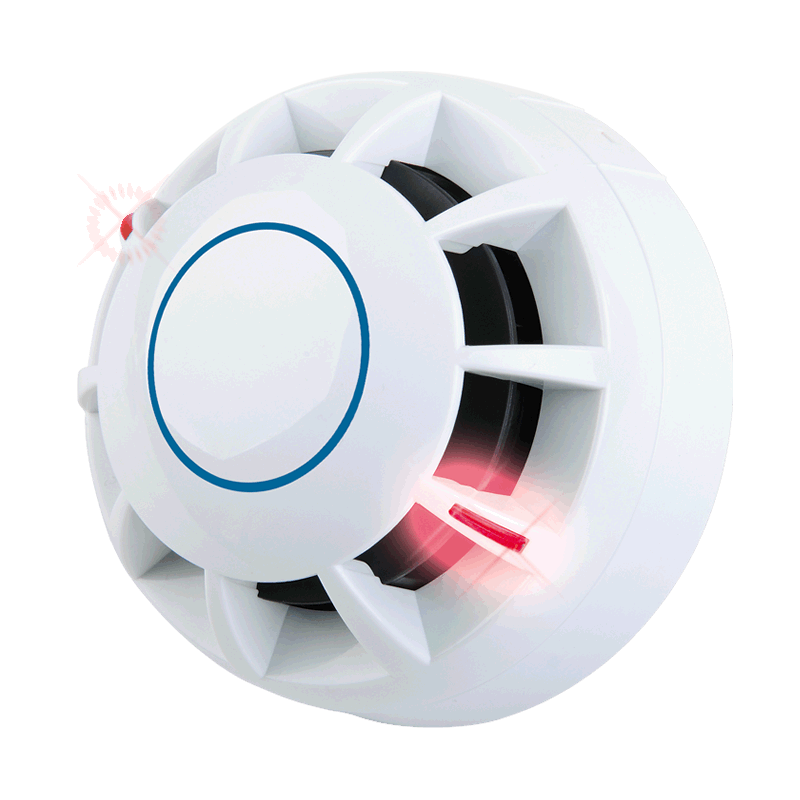

C-Tec Addressable Heat Detector
Original price was: KSh8,000.00.KSh7,500.00Current price is: KSh7,500.00. + VAT
Buy C-Tec Addressable Heat Detector from Hubtech Online Shop in Nairobi, Kenya.
C-Tec Addressable Heat Detector
- A high quality programmable heat detector for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels.
- LPCB certified to EN54-5 & 17 and Kiwa Telefication certified to EN54-13.
- Can be programmed to operate as a Class A1R (rate of rise), Class A2 (64ºC fixed temperature) or Class B (76ºC fixed temperature) heat detector. Default setting is A2.
- Onboard short circuit loop isolator.
- Includes two 8mm x 2mm ultra-bright red LED indicating strips.
- Different sensitivities can be selected for different times of the day (day/night, building occupied/unoccupied etc).
- 5mA typical alarm current (370uA typical quiescent) @ 22-40V DC.
- Programmable multi-function status LED.
- Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
Technical Specifications
| Approvals/certifications | LPCB certified to EN54-5 & 17 and Kiwa Telefication certified to EN54-13. |
| Compatibility | Compatible with C-TEC’s XFP/ZFP CAST Protocol Addressable Fire Panels. |
| Type | Class A1R, Class A2 or Class B Heat (Programmable). |
| Application/operation | Generates an alarm when a specific temperature is reached (Modes 1, 2 & 3). In Mode 1 also generates an alarm when a sudden rise in temp is detected. |
| Sensitivity | Mode 1 (A1R): Rate of Rise and 56ºC fixed; Mode 2 (A2): 62ºC fixed; Mode 3 (B): 74ºC fixed. Selectable at the panel. |
| Supply wiring | 2-wire, polarity sensitive. |
| Supply/operating voltage | 22 to 40V DC. |
| Quiescent current | 370µA typical @ 22 to 40V DC. |
| Alarm current | 5mA typical (LEDs illuminated) @ 22 to 40V DC. |
| Indicators | 2 LED indicator strips emitting red light when in alarm offering 360º visibility. Optional remote LED. |
| Connections | Via CA408 base: 1 +Ve IN (analogue swich); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen. |
| Product dimensions (mm) | 102.2mm diameter x 37mm deep (detector only); 102.2mm diameter x 57.5mm deep (detector in base). |
| Construction & finish | White polycarbonate casing rated to UL94 V-2 with nylon parts. |
| IP Rating | IP42. |
| Weight | 99g (not in base); 154g (in base). |
| Operating conditions/temperature | -20ºC to +85ºC. |
| Notes | Requires a CA408 CAST base. CA408R relay base also available. |
