Cambium EPMP 5 GHZ 180 Integrated Specifications and Details

The Cambium ePMP 5 GHz 180 Integrated is a high-performance wireless access point designed for reliable and efficient broadband connectivity. It features an integrated 180-degree sector antenna, making it ideal for point-to-multipoint deployments in rural, urban, and enterprise environments.

Overview

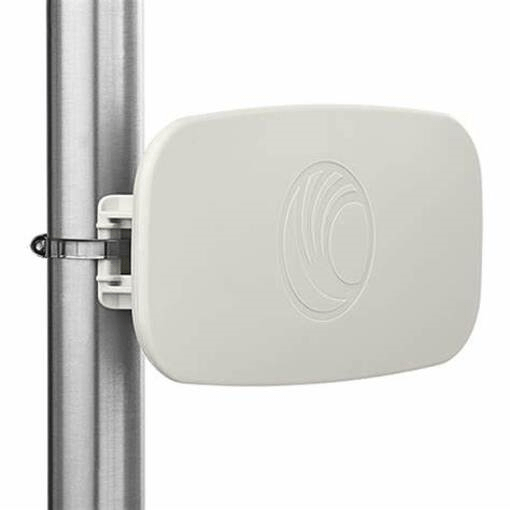

The ePMP™ Force 180 5 GHz subscriber module is the next generation of the ePMP 5 GHz Integrated Radio offering a higher-gain, integrated 16 dBi patch antenna.

Installation and alignment are easy with the adjustable mounting bracket, and the Force 180 is small, sleek, and equipped with Gigabit Ethernet port to deliver the maximum throughput.

Tech Specifications

SPECTRUM

Channel Spacing : Configurable on 5 MHz increments

Frequency range : 5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations)

Channel Width : 5 | 10 | 20 | 40 MHz

INTERFACE

MAC (Media Access Control) Layer : Cambium Proprietary

Physical Layer : 2×2 MIMO/OFDM

Ethernet Interface : 10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ = 7 & 8, Return = 4 & 5) and Standard PoE pinouts (V+ = 4 & 5, Return = 7 & 8)

Protocols Used : IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH

Network Management : IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™

VLAN : 802.1Q with 802.1p priority

PERFORMANCE

ARQ : Yes

Nominal Receive sSnsitivity (w/FEC) @ 200MHz Channel : MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)

Nominal Receive Sensitivity (w/FEC) @ 40MHz Channel : MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)

Modulation Levels (Adaptive) : MCS0 (BPSK) to MCS15 (64QAM 5/6)

Quality of Service : Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority

LINK BUDGET

Transmit Power Range : 17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)

Integrated Antenna Peak Gain : 16 dBi

Maximum Transmit Power : 30 dBm combined (subject to regional regulatory restrictions)

PHYSICAL

Antenna Connection : Integrated Antenna

Surge Suppression : 2 Joule Integrated

Environmental : IP55

Temperature : -30°C to +60°C (-22°F to +140°F)

Weight : 0.50 kg (1.1 lb.) (includes mounting bracket)

Wind Survival : 145 km/hour (90 mi/hour) with antenna

Dimensions (h x w x d) : 12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached

Pole Diameter Range : 1 – 1.6 in (2.5 – 4.1 cm) with included clamp ; up to 2.25 in (5.7 cm) with larger clamp

Power Consumption : 10 W Maximum, 5 W Typical

Input Voltage : 10 to 30 V

SECURITY

Encryption : 128-bit AES (CCMP mode)

CERTIFICATIONS

FCCID : Z8H89FT0015

Industry Canada Cert : 109W-0015

CE : 5.4 GHz: EN 301 893 V2.1.1 5.8 GHz: EN 302 502 V2.1.1

PARAMETER

Frequency Range : 4910 – 5970 MHz

Antenna Type : Integrated

Typical Gain : 16 dBi

3db Beamwidth-Azimuth : 15°

3db Beamwidth-Elevation : 30°

Polarization(s) : Dual Linear, H/ V

Front-to-Back Isolation : >20 dB

Cross Polarization : 15 dB
