Cambium EPMP1000 5GHZ Connectorized Specifications and Details

Overview

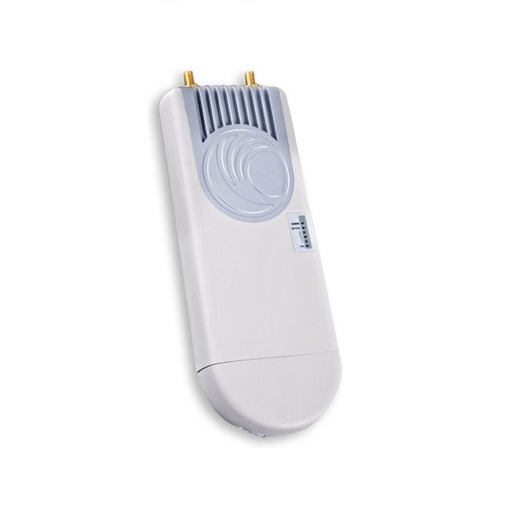

The Cambium EPMP1000 Connectorized Radio has the flexibility to connect to a variety of external antennas such as 90 and 120 degree sector, omni, and high-gain panel or dish antennas.

This versatility allows service providers to configure their network using high gain antennas to endure challenging environments. The ePMP 1000 Connectorized Radio can be configured as a Subscriber Module, an unsynchronized Access Point or a Backhaul radio.

Tech Specifications

SPECTRUM

Channel Spacing : Configurable on 5 MHz increments

Frequency range : 5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations) 2.4 GHz: 2402 – 2472 MHz

Channel Width : 5 | 10 | 20 | 40 MHz

INTERFACE

MAC (Media Access Control) Layer : Cambium Proprietary

Physical Layer : 2×2 MIMO/OFDM

Ethernet Interface : 100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5)

Protocols Used : IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH

Network Management : IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™

VLAN : 802.1Q with 802.1p priority

PERFORMANCE

ARQ : Yes

Nominal Receive Sensitivity (w/FEC) @ 20MHz Channel : MCS0 = -93 dBm to MCS15 = -69 dBm (per branch)

Modulation Levels (Adaptive) : MCS0 (BPSK) to MCS15 (64QAM 5/6)

Quality of Service : Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Addr, Broadcast, Multicast and Station Priority

LINK BUDGET

Transmit Power Range : -17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)

PHYSICAL

Antenna Connection : 50 ohm, RP (Reverse Polarity) SMA (2)

Surge Suppression : 1 Joule Integrated

Environmental : IP55

Temperature : -30°C to +60°C (-22°F to +140°F)

Weight : 0.49 kg (1.1 lb.)

Wind Survival : 145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas

Dimensions (h x w x d) : 29.1 x 14.5 x 8.3 cm (11.4 x 5.7 x 3.3 in)

Power Consumption : 7 W Maximum, 5 W Typical

Input Voltage : 10 to 30 V

SECURITY

Encryption : 128-bit AES (CCMP mode)

CERTIFICATIONS

FCCID : 2.4 GHz: Z8H89FT0011 / 5 GHz : Z8H89FT0006

Industry Canada Cert : 2.4 GHz: 109W-0011 / 5 GHz : 109W-0006

CE : 5.4 GHz: EN 301 893 V2.1.1 5.8 GHz: EN 302 502 V2.1.1
