ePMP Force 110 High Gain Specifications and Details

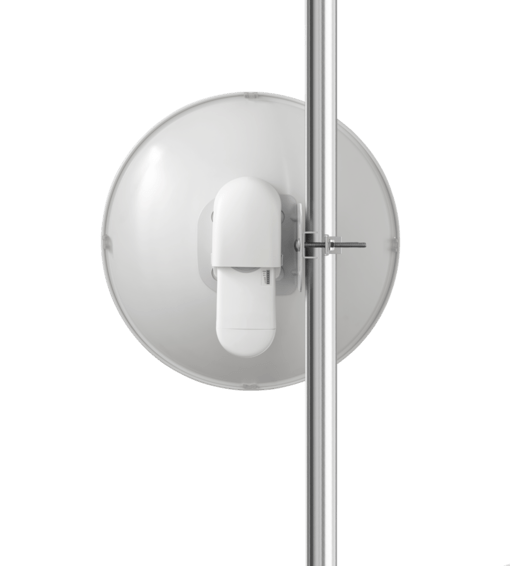

The Cambium EPMP110A5-25 Dish Antenna is a high-performance directional antenna designed to enhance signal strength and coverage in point-to-point and point-to-multipoint wireless networks. It delivers superior connectivity and interference mitigation, making it ideal for broadband service providers, enterprise networks, and rural deployments.

Overview

For high interference environments.

The ePMP™ Force 110 high gain integrated solution enhances range (25 dBi antenna with 30 dBm of transmit power) and improves throughput (up to 150 Mbps of real user data). The Flexible Mode of operation ensures robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and exceptionally low 6 ms latency. ePMP Force 110 comprises ePMP 1000 Connectorized Radio and ePMP 110A-525 Dish.

Tech Specifications

SPECTRUM

Channel Spacing : Configurable on 5 MHz increments

Frequency range : 5 GHz 5150 – 5970 MHz (exact frequencies as allowed by local regulations)

Channel Width : 5, 10, 20 or 40 MHz

INTERFACE

Physical Layer : 2×2 MIMO/OFDM

Ethernet Interface : 100/1000 BaseT, rate auto negotiated (802.3af compliant)

Protocols Used : IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH

Network Management : IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™

PERFORMANCE

Nominal Receive Sensitivity (w/FEC) @ 20MHz Channel : CSO = -93 dBm to MCS15 = -69 dBm (per branch)

Nominal Receive Sensitivity (w/FEC) @ 40MHz Channel : MCS0 = -90 dBm to MCS15 = -66 dBm (per branch)

Modulation Levels (Adaptive) : MCS0 (BPSK) to MCS15 (64QAM 5/6)

Quality of Service : Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority

PHYSICAL

Surge Suppression : 1 Joule Integrated

Environmental : IP55

Temperature : -30°C to +60°C (-22°F to +140°F)

Weight : 4.1 kg (9 lbs)

Dimensions (Dia x Depth) : 47 cm x 27 cm (18.5 in x 10.6 in)

Pole Diameter Range : .7cm -7.6cm (2.25in – 3in)

SECURITY

Encryption : 128-bit AES (CCMP mode)

Features

1. Cambium ePMP 110A5-25 Dish Antenna: Specifically designed by Cambium Networks for use with the ePMP wireless broadband platform.
2. High-Gain Dish Antenna: Features a high gain design for enhanced signal reception and transmission.
3. Frequency Range: Optimized for a specific frequency range, ensuring compatibility with ePMP wireless devices.
4. 25 dBi Gain: Boasts a substantial 25 dBi gain, providing increased signal strength for reliable and extended wireless connectivity.
5. Precision Alignment: Designed for precise alignment to maximize signal performance and minimize interference.
6. Point-to-Point Connectivity: Ideal for point to point wireless connectivity, establishing reliable links over long distances.
7. Robust Construction: Crafted with durable materials to withstand outdoor environments and harsh weather conditions.
8. Compact Form Factor: Despite its high gain, maintains a compact form factor for ease of installation and aesthetic considerations.
9. Quick and Easy Installation: Engineered for a quick and straightforward installation process, minimizing downtime.
