Cambium Networks cnMatrix EX1028-P Switch
Original price was: KSh127,000.00.KSh125,000.00Current price is: KSh125,000.00. + VAT
- Zero-touch deployments
- Policy Based Automation
- Auto device profiling and segmentation
- Non-blocking, line-rate architecture with fully featured L2 switching

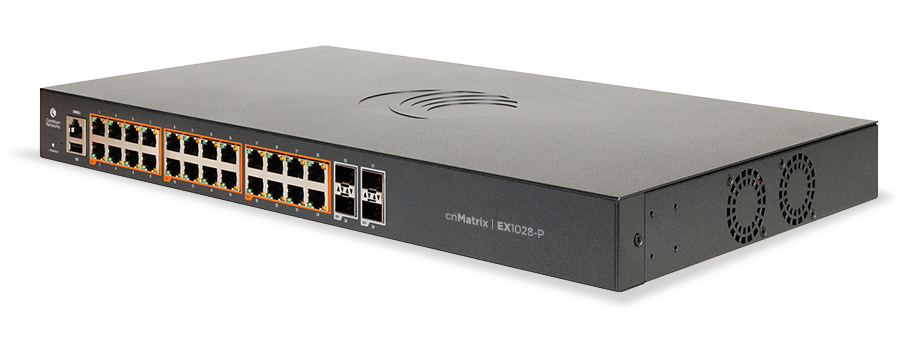

Cambium Networks cnMatrix EX1028-P Switch
Cambium Networks cnMatrix EX1028-P is a powerful, managed switch designed to support medium to large networks. With 28 Gigabit Ethernet ports, including 24 Power over Ethernet (PoE) ports. Providing up to 30W per port to power devices like IP cameras, access points, and phones. It features zero-touch deployment, making installation quick and easy.
Specifications
| Quality of Service | ACL mapping and marking of ToS/DSCP (COS) |
| ACL mapping marking of 802.1p | |
| ACL mapping to priority queue | |
| DiffServ support | |
| Honoring DSCP and 802.1p (CoS) | |
| Traffic shaping/metering | |
| Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP | |
| Traffic Management | ACL-based inbound rate limiting policies |
| Broadcast, multicast and unknown unicast rate limiting | |
| Inbound rate limiting per port | |
| Outbound rate limiting per port/queue | |
| Security | 802.1x authentication |
| MAC authentication* | |
| DHCP snooping | |
| RADIUS authentication/authorization | |
| Radius/Tacacs/Tacacs+ | |
| Authentication, Authorization, and Accounting (AAA) | |
| Secure shell | |
| Secure copy (SCP)* | |
| Local username/password |
| Layer 2 Feature Set | 802.1s multiple spanning tree |
| VLAN, Port, Protocol, 802.1q | |
| QinQ* | |
| 802.1d | |
| 802.1x authentication | |
| Auto MDI/MDIX | |
| BPDU Guard, Root Guard | |
| IGMP Snooping v1/v2/v3*, Fast Leave | |
| LLDP/LLDP MED | |
| IGMP Proxy | |
| Static MAC | |
| Flow Control per port | |
| Per VLAN STP (PVST/PVRST) | |
| Port Mirroring: port based, ACL based, VLAN based | |
| Port Isolation/Private VLAN Edge | |
| Link Aggregation Groups (Static/LACP) | |
| Rate Limiting/Storm Control | |
| Jumbo frame (9k) | |
| DHCP Snooping | |
| BPDU filtering | |
| Broadcast/Multicast/Unlearned Unicast (Storm Control) | |
| DoS Protection | |
| Ping/TraceRoute/ICMPv6 | |
| Layer 3 Feature Set | Inter-VLAN Routing |
| Static ARP | |
| Static Routes | |
| DHCP Relay |
Management | cnMaestro and XMS (cloud management) |
| Industry standard Command Line Interface (CLI) | |
| DHCP Client | |
| Embedded web management (HTTP/HTTPS) | |
| Embedded DHCP server | |
| USB file management and storage | |
| SSH / SSH v2 | |
| SNMP v1/v2/v3 | |
| DHCP relay |
| Simple Network Time Protocol (SNTP) |
| Local/remote system logging |
| Policy Based Automation |
| Display log messages multiple terminals* |
| TFTP/SFTP |
| Telnet client/server |
| IPv6 management |
| Password management |
| Autoinstall support for firmware images and config files |
SecurityPERMIT/DENY ACTIONS FOR INBOUND IP AND LAYER 2 TRAFFIC CLASSIFICATION BASED ON: | Source/Destination IP address EtherType |
| TCP/UDP Source/Destination port IEEE 802.1p user priority | |
| IP Protocol Type VLAN ID | |
| Type of Service (ToS) or differentiated services RFC 1858—Security Considerations for IP (DSCP) field Fragment Filtering | |
| Source/Destination MAC address * Feature to be included in a future release. |
