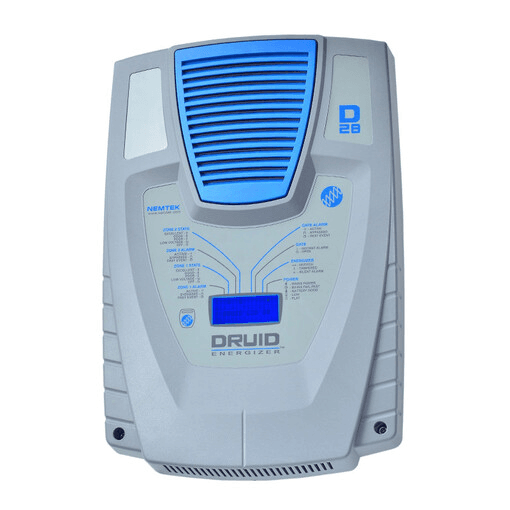

ENERGIZER – DRUID 28 LCD 8 JOULE 2 ZONE SPECIFICATIONS AND DETAILS

Overview

Nemtek’s range of electric fencing energisers are suitable for a variety of applications from home and commercial security through to animal management and large game reserves. Nemtek energisers feature a robust design and high-quality materials to meet your specific electric fencing needs.

Our energizers feature a robust design and use top-quality materials. This focus on durability ensures they withstand the test of time, even in the most challenging environments. When you invest in a Nemtek energizer, you’re not merely acquiring a product; you’re gaining a reliable partner in securing your property, managing your livestock, or safeguarding large expanses of land.

With Nemtek, you can trust that our energizers are purpose-built to cater to the exacting demands of electric fencing across a spectrum of applications. Your peace of mind and satisfaction are at the core of our commitment to providing you with the best electric fencing solutions available.

Highlights

• 2 x 3.7J output zones independently monitored and controlled
• Each zone can be set independently to be on/off or in high/low voltage modes
• Can be programmed into alarm sensor mode allowing to be integrated into a separate burglar alarm system
• Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
• Powered by 230V mains and includes built-in battery for back up power
• Built-in gate alarm input to monitor if the gate is open or closed
• Optional keypad for controlling and programming the energiser
• The relay expansion card can be used to increase the number of information outputs from the energiser
• The LCD background colour changes to easily identify the fence condition

DRUID 28 LCD 8 Joule 2 Zone Technical Specification

• Enclosure size: L400mm x W270mm x D125mm
• Weight excluding battery: (7AH) 5.7kg
• Weight including battery: (7AH) 8.0kg
• IP rating: IPx4
• Operating temperatures: -10 to 50 degC
• Operating humidity: < 80% non-condensing
• Electrical supply voltage: 240V
• Typical power consumption (normal operating conditions): 18VA
• Internal battery 7AH Standby time (fully charged battery): 24hrs
• High-voltage output Energy (500 Ohms load): 3.7 Joule per zone
• Open circuit voltage: 9 000V
