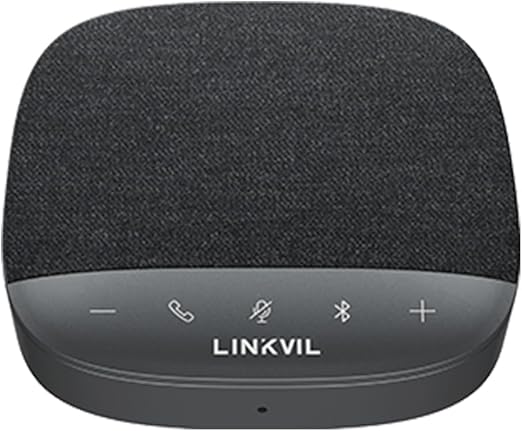

Fanvil CS20 USB Bluetooth Speakerphone

Fanvil CS20 USB Bluetooth Speakerphone

Fanvil CS20 Speakerphone Size: 110*110*35mm 3W speakerphone 3 omnidirectional analog mic Voice pickup range: 1.5 meters 16h talk time Touch buttons Connection via Bluetooth and USB

• Flexible Connectivity – Supports USB-C, USB Dongle, and Bluetooth for seamless device integration.
• Crystal-Clear Audio – Features ENC, ANS, and AGC for superior noise cancellation and voice clarity.
• CS20 Long Battery Life – Up to 16h talk time, 9.4h music playback, and 25h standby for uninterrupted use.
• Compact & Stylish Design – Modern fabric cover and portable form for easy carrying.
• User-Friendly Controls – Touch buttons for call management, volume, mute, and Bluetooth commands.

Microphone

• Type: 3 omnidirectional analog microphones
• Voice pickup range: 1.5m
• Sensitivity: -38dBFs/Pa
• Frequency range: 20Hz~8KHz
• SNR: >65dBSpeaker
• Speaker size/Rated power: φ40mm/4Ω 3W
• Max. output power：5W
• Root Mean Square（RMS)：3W
• Sensitivity: 87dB±3dB
• Frequency range: 100Hz~20KHz
• Music mode bandwidth: 100Hz~20KHz
• Speak mode bandwidth: 100Hz~20KHz

Audio

• Crystal sound experience
• Full-duplex technology
• Environment Noise Cancellation (ENC)
• Adjustive Noise Suppression (ANS)
• Automatic Gain Control (AGC)
CS20 Portable Speakerphone

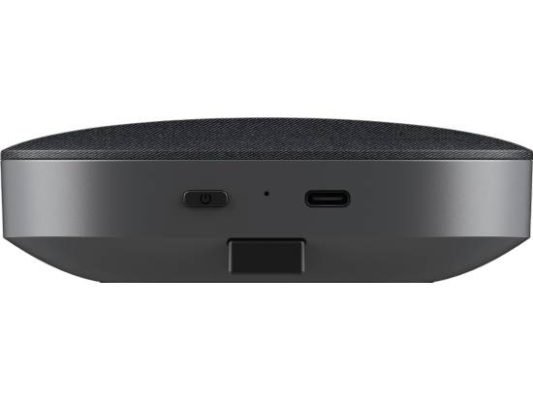

Connectivity

• Connect to PC/mobile device:
USB-C, Dongle & Bluetooth
• Bluetooth
– Version: Bluetooth 5.4
– Profiles: HSP V1.2, HFP V1.7, A2DP V1.2
– Operating range: 10m
– Pairing list: Up to 8 devices
– Simultaneous connections: 2

Battery

• Battery capacity: 2000mAh
• Charging time/power: 2 hours (5V/1.3A)
• Max. charge current: 1.3A
• Talk time: Up to 16 hours
• Music time: Up to 9.4 hours
• Standby time: Up to 25 hours

 Weight

– Product: 201g
– Carton Net weight: 6.3kg
– Carton Gross weight: 6.8kg
• Temperature and humidity
– Working temperature: -10℃ to +60℃
– Storage temperature: -20℃ to +70℃
– Working humidity: 10% to 95%RH

Package Contents

• CS20 Portable Speakerphone
• USB Cable
• Carry Bag
• Quick Start Guide
• Safety Information & Declaration
