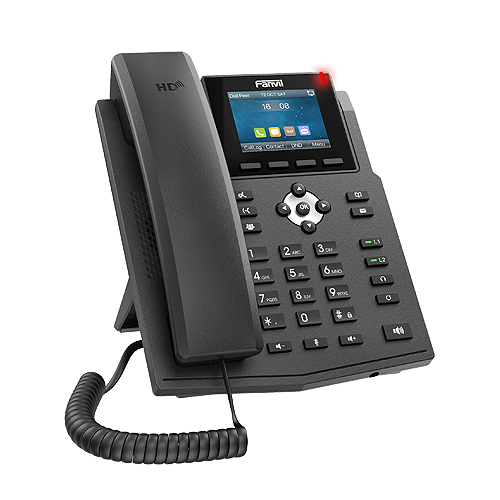

Fanvil X3SW Wireless IP Phone

Fanvil X3SW Wireless IP Phone

Fanvil X3SW Wireless IP Phone is an entry-level WiFi color screen IP Phone. It use 320x240 2.4-inch color screen, and support HD voice, fast ethernet, 4 SIP accounts, Built–in 2.4G WiFi, 6-party conference etc rich functions. It provides the high-quality and
convenient experience for users at an affordable price.

Highlights

□√ 4 SIP lines, SIP hotspot
□√ 1000 local phonebook, caller ID, call hold, call transfer
□√ 2.4” main color display
□√ HD audio on speakerphone and handset
□√ Opus voice: can handle a variety of audio applications, including IP voice,
Multiparty conference, etc.
□√ Support 6-party local conference
□√ Support EHS wireless headset
□√ Built-in 2.4GHz WiFi, supporting wireless network connection.
□√ Dual Fast ports
□√ Stand with 2 adjustable angles of 45 and 50 degrees
□√ Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch,
Elastix, Avaya etc

Generic

 4 SIP Lines
 HD Voice
 Built-in 2.4GHz WiFi
 2.4-inch color screen
 Handset / Hands-free / Headset mode
 Desktop Stand / Wall-mounted (need an additional wall hanging
parts)
 External Power Supply

Phone Functions

 Local Phonebook (1000 entries)
 Remote Phonebook (XML/LDAP, 1000 entries)
 Call logs (In/Out/Missed, 600 entries)
 Black/White List Call Filter
 Screen saver
 Voice Message Waiting Indication (VMWI)
 Programmable DSS/Soft keys
 Network Time Synchronization
 Built-in 2.4GHz Wi-Fi
 Network standard: IEEE 802.11b/g/n
 Transmission rate: Up to 150Mbps (dynamic)
 Support Plantronics wireless headset (Through Plantronics
APD-80 EHS Cable)
 Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
 Support Recording (Through Server)
 Action URL / Active URI

Call Functions

 Call out / Answer / Reject
 Mute / Unmute (Microphone)
 Call Hold / Resume
 Call Waiting
 Intercom
 Caller ID Display
 Speed Dial
 Anonymous Call (Hide Caller ID)
 Call Forward (Always/Busy/No Answer)
 Call Transfer (Attended/Unattended)
 Call Parking/Pick-up (Depending on server)
 Redial
 Do-Not-Disturb
 Auto-Answering
 Voice Message (With server)
 6-way Conference
 Hot Line
 Hot desking

Audio

 HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz
Frequency Response)
 HAC handset
 Wideband ADC/DAC 16KHz Sampling

 Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
 Wideband Codec: G.722, Opus
 Full-duplex Acoustic Echo Canceller (AEC)
 Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)
/ Background Noise Estimation (BNE) / Noise Reduction (NR) /
Automatic Gain Control (AGC)
 Packet Loss Concealment (PLC)
 Dynamic Adaptive Jitter Buffer
 DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
 VQM voice quality monitoring

Network

 Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
 IP Mode:IPv4/IPv6/IPv4&IPv6
 IP Configuration: Static IP / DHCP / PPPoE
 Network Access Control: 802.1x
 VPN: L2TP / OpenVPN
 VLAN
 LLDP
 QoS
 RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

 SIP2.0 over UDP/TCP/TLS
 RTP/RTCP/SRTP
 STUN
 DHCP
 IPv6
 LLDP
 PPPoE
 802.1x
 L2TP
 OpenVPN
 SNTP
 FTP/TFTP
 HTTP/HTTPS
 TR-069
 AES128 & AES256
Deployment & Management
 Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR–069
 Web Management Portal
 Web-based Packet Dump

 Configuration Export / Import
 Phonebook Import/Export
 Firmware Upgrade
 Syslog
Physical Specifications
 LCD: 2.4-inch (320x240) Color Screen
 Keypad: 34 keys, including
 4 Soft-keys
 7 Function keys (Hold/Transfer/Conference/Phonebook
/MWI/Headset/Redial)
 2 Line keys (With LED Indicator Light)
 4 Navigation keys
 1 OK key
 12 Standard Phone Digits keys
 3 Volume Control keys (Up/Down/Mute (Microphone))
 1 Hands-free key
 HD Handset (RJ9) x1
 Standard RJ9 Handset Wire x1
 1.5M CAT.5E Ethernet Cable x1
 Back Rack x1
 Power adapter x1
 Status Indicator Light x1 (Red)
 RJ9 Port x2: Handset x1, Headset x1
 RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
 Safety Keyhole x1
 DC Power Input: DC5V / 1A
 Power Consumption: Idle 0.9~1.3W,Peak 2.98~3.52W
 Working Temperature: 0~45°C
 Working Humidity: 10~95%
 Installation:
 Desktop Stand
 Wall-mounted (need an additional wall hanging parts)
 Color: Black
 Device Dimensions:
 Desktop Stand (Angles 1): 169×186.3×174.5 mm
 Desktop Stand (Angles 2): 169×177.6×183.7 mm
 Wall-mounted: 169×115.6×212.5 mm
 Gift Box Dimensions: 274x215x68 mm
 Outer CTN Dimensions: 450x360x294 mm (10 PCS
