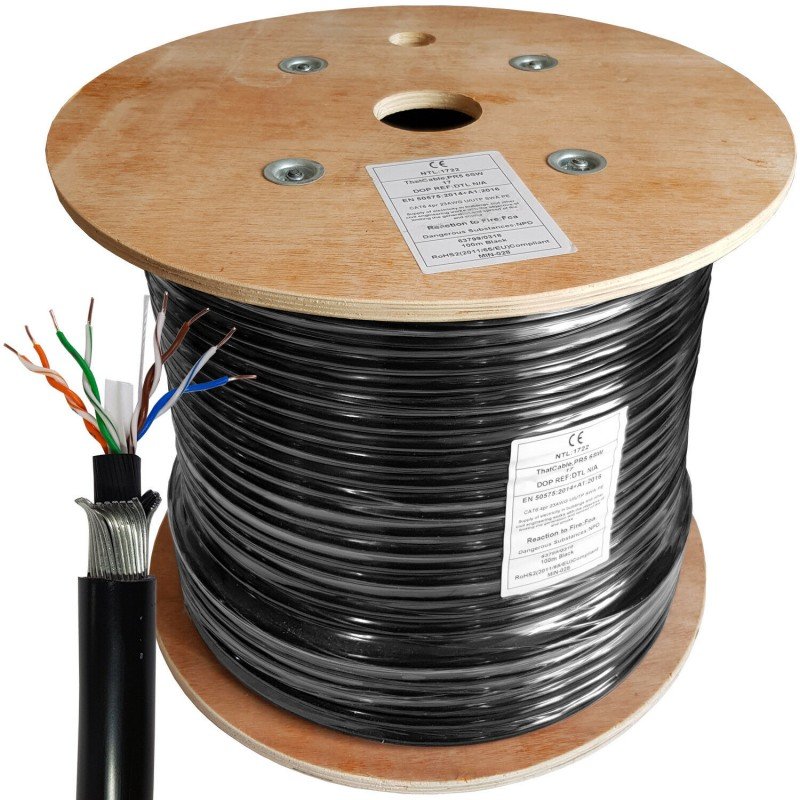

Giganet CAT 6 U/UTP LDPE-Category 6A Solid Outdoor Cable – 305M Description

The Giganet Category 6A Solid U/UTP Outdoor LDPE Cable comes with a black polyethylene outer sheath, for outdoor use

Supports of high-speed data protocols of up to 1Gbps i.e. gigabit The cable is tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and also ISO/ IEC 11801 Category 6 specifications Consists of 8 colour coded 23AWG polyethylene insulated conductors twisted into 4 pairs Insulation Thickness – 0.23mm or 0.0091inches Giganet Category 6 UTP 4 Pair Outdoor LDPE Cable 305m drum

Giganet is a standard approved cable for Ethernet /Local Area Networking. In Kenya.

The cable specified to be Full copper by the manufacturer. The Giganet  Cat6 Cable is suitable  with wall sockets and patch panels rather than for crimping
. Voice, Data, Video Cabling, ISDN, etc

The Giganet Category 6 UTP outdoor cable is designed for optimal support of high-speed data protocols delivery up 10Gbps performance for a length of less than 50 M (Ideal small office networks )

Ideal for small office workstation. The cable comes with a black polyethylene outer sheath, for outdoor use. Designed to be quick and easy to install the cable requires no specialist installation tools and, snag-free installation.

Giganet Category 6A Solid U/UTP Outdoor LDPE Cable key features;

• Unshielded Twisted Pair (4×2 cables).
• High-quality Cat6 networking cable
• Designed for use in gigabit Ethernet connections audio.
• No. of Max Strands x Strand Size: 1 x 0.57mm
• No. of Pairs: 4 Reel Length (Imperial):
• 305 Mt Reel Length (Metric): 305m LAN

Solid copper conductor Conforms to ISO/IEC11801 ANSI/TIA/ELE-568A Impedance- 100 /-15Ω Conductor Material:

Copper Conductor Size AWG: 23AWG External Diameter: 6.5mm Jacket Material: PVC (Polyvinylchloride)

The Giganet Category 6 UTP cables are manufactured and tested to the TIA/EIA 568‐B.2‐1, EN50173‐1 and ISO/ IEC11801 Category 6 specifications.

The Giganet Ethernet cable Each cable consists of 8 color-coded 23AWG polyethylene insulated conductors.
These are twisted together to form 4 pairs with varying lay lengths.

These pairs are then formed around a central ‘X’ shaped polyethylene filler. This filler assists in maintaining and enhancing the cables’ performance. A jacket of UV and moisture resistant polyethylene is applied to make this cable ideal for outdoor installation.

The printing detail along the outer sheath includes the cable part code, specification detail and our new 305 to 0-meter
marked system. As the cable is dispensed from the box the sequential marking counts down from 305 to 0 meters, as well as reducing waste and accounting easily for cables installed, this innovative print legend finally removes the guesswork from assessing the amount of cable remaining in partly used boxes.

Due to the risk of lightning or over‐voltage damage, both ends of the external cable must be fitted with equipment suitable for protecting the computer system and operators from a direct or indirect lightning strike or other over-voltage situation.
