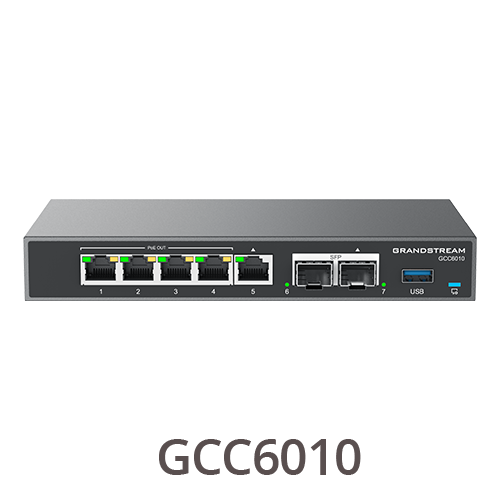

Grandstream GCC6010 Convergence Solution
Original price was: KSh352,000.00.KSh350,000.00Current price is: KSh350,000.00. + VAT
- All-In-One Networking Convergence Solution (VPN Router / Firewall / Switch / IP PBX)
- 2.5Gbps Router
- 1Gbps IPsec VPN Throughput
- 2 x 2.5 Gigabit SFP ports and 5 x Gigabit Ethernet ports
- 4 x IEEE802.3af/at PoE out ports (Total Max 36W)
- iPBX up to 200 SIP users or 24 concurrent calls (12 users and 4 concurrent calls by default)
- Desktop and Wall-mountable
Grandstream GCC6010 Convergence Solution
The Grandstream GCC6010 Series offers an all-in-one solution integrating unified communications and networking into a single platform. Combining a VPN router, next-gen firewall, IP PBX, and network switch or Wi-Fi access point, these devices ensure enterprise-grade network security and seamless management of all Grandstream endpoints.
Configure and manage networks quickly through the cloud with GDMS, or via the Grandstream mobile app, local Web UI, and CLI console. Perfect for small-to-medium businesses, the GCC6010 Series simplifies and enhances communication, security, and collaboration needs.
Grandstream GCC6010 Technical Specification
|
GCC6011 | ||
| Network Ports | 2 x 2.5 Gigabit SFP ports and 5 x Gigabit Ethernet ports *All ports are WAN/LAN configurable, max 3x WAN | 2 x 2.5 Gigabit SFP port and 10 x Gigabit Ethernet ports *3x Fixed WAN |
| Auxiliary Ports | 1xMicro-SD, 1xUSB 3.0, 1xReset | |
| Memory | 2GB RAM, 32GB eMMC Flash | |
| External Storage | N/A | Optional, M.2 SSD |
| Router | 2.5Gbps | |
| IPsec VPN Throughput | 1Gbps | |
| NAT Sessions | 160K | |
| IDS/IPS | 900Mbps | |
| PBX | 12 users and 4 concurrent calls by default Upgrades available for purchase (See more for PBX capacity upgrade options) | |
| PoE Output | 4 x PoE out ports, IEEE802.3af/at, Maximum PoE Wattage: 36W | |
| Mounting | Desktop and Wall-mountable | Desktop, Wall, and Rack-mountable |
Material | Metal | |
| LEDs | 7x single LEDs , 4x PoE LEDs, and 1x RGB LED for device tracking and status indication | 12x single LEDs, 4x PoE LEDs, and 1x RGB LED for device tracking and status indication |
| Connection Type | DHCP, Static IP, PPPoE | |
| Network Protocols | IPv4, IPv6, IEEE802.1q ,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab | |
| QoS | • VLAN, TOS • Support multiple traffic classes, filter by port, IP address, DSCP, and policing • App QoS: Application/protocol monitoring and traffic statistics • VoIP Prioritization | |
| Firewall | • DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT • DPI, Anti-Virus, IPS/IDS, SSL Proxy • Content Control: DNS filtering, web url/class/key words filtering, application identification and control | |
|
VPN | • IPsec VPN Client-to-Site / Site-to-Site • IPSec Encryption: 3DES, AES • IPSec Authentication: MD5, SHA-1, SHA2-256 • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14 • IPSec Protocols: ESP • IPSec NAT Traversal • PPTP VPN Server / Client • PPTP Encrpytion: MPPE 40-bit, 128-bit • PPTP/L2TP Authentication: MS-CHAPv1/2 • L2TP Client-to-Site • OpenVPN® Server / Client • OpenVPN® Encryption: AES, DES • OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512 • OpenVPN® Certificate: RSA • WireGuard® | |
Network Management | Grandstream Device Management System (GDMS), Local Web GUI, SSH, and SNMP (v1/ v2c/v3)) | |
| Max AP/Clients | Up to 150 GWN APs; Up to 500 Clients | |
| Power and Green Energy Efficiency | Universal power adaptor included: Input 100-240VAC 50-60Hz Output: 48VDC 1A (48W); 4 x PoE out ports, IEEE802.3af/at Maximum PoE Wattage: 36W | |
| Environmental | Operation: 0°C to 45°C Storage: -30°C to 60°C Humidity: 5% to 95% Non-condensing | |
| Physical | Unit Dimension: 191x 101 x 29mm Unit Weight: 520g Entire Package Dimension: 300 x 130 x 53 mm Entire Package Weight: 835g | Unit Dimension: 280 x 180 x 44 mm Unit Weight: 1200g Entire Package Dimension: 366 x 211 x 53 mm Entire Package Weight: 1600g |
| Package Content | GCC6010/GCC6011, Universal Power Supply, Rack mount kit (GCC6011 only), Quick Installation Guide | |
| Compliance | FCC, CE, RCM, IC | |
