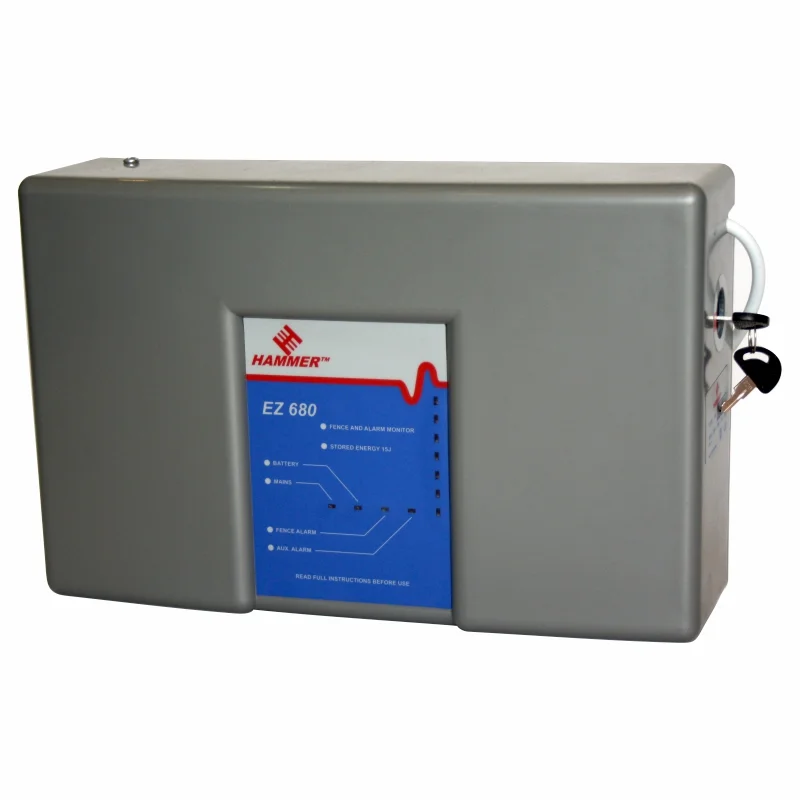

HAMMER 680 8 JOULE ENERGIZER WITH BATTERY  SPECIFICATIONS AND DETAILS

Overview

Experience top-tier security with the Hammer 680 8 Joule Energizer, a cutting-edge solution designed to meet your every security need. This advanced system boasts a plethora of features:

Features

1. 8 Joule Powerhouse: With a potent 8 Joule output, this energizer delivers robust performance, ensuring a formidable barrier for your security needs.
2. Live Line Monitoring: Enjoy the peace of mind that comes with high voltage live line monitoring, complete with an alarm system that alerts you to any potential breaches.
3. Gate (Auxiliary) Monitoring: The energizer includes gate monitoring with an alarm function, adding an extra layer of security to your property.
4. Siren and Strobe Connections: Easily integrate sirens and strobe lights for enhanced security response and visual deterrence.
5. Armed Response Radio Connectivity: Connect to an armed response radio, ensuring swift action in the event of a security breach.
6. User-Friendly Controls: The system features an easy-to-use on/off reset key, simplifying operation and ensuring that you have complete control.
7. Remote Control Option: Enjoy the convenience of remote control, enabling you to manage your security system effortlessly from a distance.
8. Fence Return Voltage Monitoring: Monitor the fence return voltage for a single zone, allowing you to pinpoint any issues or breaches with precision.
9. Impressive Coverage: Power up to 4 kilometers of fence wire (1mm), ensuring extensive security coverage for your property.
10. Maximum Output: With an 8 Joule output and a 10KV maximum output, this energizer offers formidable protection against intruders.
11. Battery Backup: Equipped with a reliable battery backup, your security remains uninterrupted even during power outages.
12. Lightning and Surge Protection: Built-in lightning and power surge suppression safeguards your system from unpredictable weather conditions and electrical disturbances.

The Hammer 680 8 Joule Energizer represents the pinnacle of security technology, offering a comprehensive array of features to keep your property secure. With its impressive power, monitoring capabilities, and built-in safeguards, it ensures peace of mind and reliable protection at all times. Upgrade your security infrastructure with the Hammer 680 today.

Technical Specification

• Stored energy: 15J,
• Output energy 500ohm: 8J,
• Output Voltage max: 10KV,
• Output voltage min: 8kv,
• Backup time max: 14hrs,
• Backup time min: 7 hrs,
• Battery Volts: 12V,
• Battery Capacity: 7Ah,
• Mains power: 220vac,
• Pulse period: 1-1.5s,
• Pulse Width: 0.3ms,
• Alarm delay: 4s,
• Siren time out: 4min,
• Fence wire 1.6mm galvanized: 8km,
• Fence wire 2.2mm galvinized: 40km,
• Energizer width:21.5cm,
• Related products
• Energizer length: 33.5cm,
• Energizer height: 9.5cm,
• Energizer weight: 8kg approx.
