Hikvision DS-PDD15AM-EG2 Wired Dual-Tech AM Detector
Original price was: KSh7,000.00.KSh6,000.00Current price is: KSh6,000.00. + VAT
- Detection Range: 15m / 85.9°
- Anti-masking, Anti-cloaking and Anti-blocking detection for higher security scenario
- Automatic sensitivity and 24Ghz smart microwave
- Digital temperature compensation and IFT technology

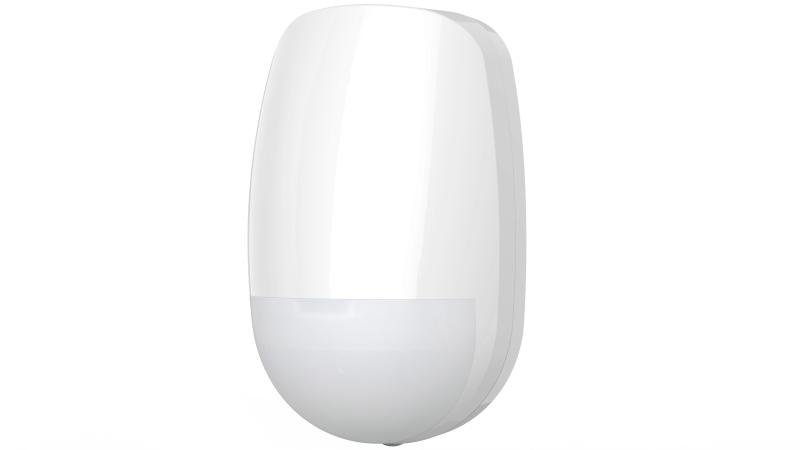

Hikvision DS-PDD15AM-EG2 Wired Dual-Tech AM Detector
The Hikvision DS‑PDD15AM‑EG2 is a wired dual-technology intrusion detector combining PIR (passive infrared) and 24 GHz microwave sensors. DS-PDD15AM-EG2 is dual-tech detectors with Anti-masking feature. Non-interfering technology allowing back to back installation and no penetration through the wall. It allows the detector to be installed and setup quicker than traditional DT’s giving time and cost saving advantages to the installer.
Specification | |
| Detection Performance | |
| Detection Method | Passive Infrared,Microwave |
| Detection Range | 15m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3～2m/s |
| Sensitivity | Auto,Low |
| White Light Filter | 6500lux |
| Microwave Frequency | 24GHz(24.15～24.25GHz) |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front |
| Anti-masking | Support |
| Anti-cloaking | Support |
| Anti-blocking | Support |
| Interface | |
| Alarm Output | Normally Closed |
| LED Indicator | Green(PIR), Red(Microwave), Blue(Alarm) |
| Transmission | |
| Transmission Method | Wired |
| Electrical Characteristics | |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| Power Consumption | Maximum current：25mA@12VDC Quiescent current： 17mA@12VDC |
| General | |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 65.7 mm (2.59 “) × 103.8 mm (4.09 “) × 45.5 mm (1. 79 “) |
| Weight | 100g |
| Mounting Height | 1.8 m to 2.4 m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional wall & ceiling accessory |
The Hikvision DS‑PDD15AM‑EG2 combines PIR and microwave detection into a robust security sensor equipped with anti-blocking defenses, temperature compensation, and smart filtering. It’s ideal for professional indoor security systems requiring dependable, low-false alarm performance.
