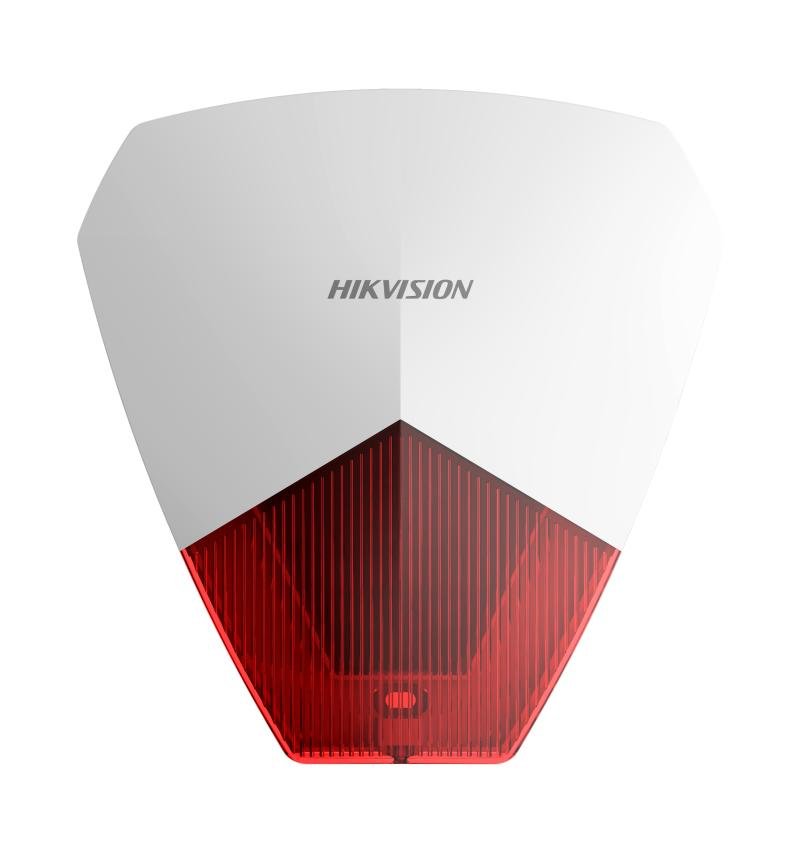

Hikvision DS-PS1-R Wired Sounder
The wired sounder is used to connect to wired control panel, by using 12v out pout voltage from panel, the sounder can alarm up to 105dB sound. The sounder can be used both
internal or external, the LED flash and the sounder indication can be configured separately.
Full Specification of the Hikvision DS-PS1-R.
- Model: Hikvision DS-PS1-R Wired Sounder
- Wired Connection: Utilizes a reliable wired connection for stable communication
- Sound Output: Produces a powerful sound output of [insert decibel level] for clear and audible notifications
- Compatibility: Seamlessly integrates with Hikvision’s security ecosystem, including CCTV systems and alarm panels
- Robust Design: Constructed with durable materials to withstand harsh environmental conditions and resist tampering
- Tamper-Proof: Equipped with tamper-proof features to prevent unauthorized interference or sabotage attempts
- Easy Installation: Simplified installation process with included mounting hardware and straightforward setup instructions
- Versatile Usage: Suitable for a wide range of security applications, including residential, commercial, and industrial settings
- Weatherproof: IP65-rated weatherproof housing ensures reliable operation even in outdoor environments exposed to rain, dust, and extreme temperatures
- Voltage: Compatible with standard power sources, operating at [insert voltage range]
- Dimensions: Compact and streamlined design for convenient installation and discreet placement.
Specification
| Model | DS-PS1-R | |
|
Electrical characteristics | Power supply | 8 to 16 VDC, Max.0.22A |
| Operation humidity | 10% to 90% | |
| Operation temperature | -20℃ to +60℃ | |
| Power consumption | Quiescent current: 0.96W | |
|
General | IP rate | IP54 |
| Dimension (W x H x D) | 140 x 134 x 33mm | |
| Shell material | PC+ABS | |
| Color | Red | |
| Weight | 185 g | |
| Audio | Sound pressure | 105 dB/30cm |
