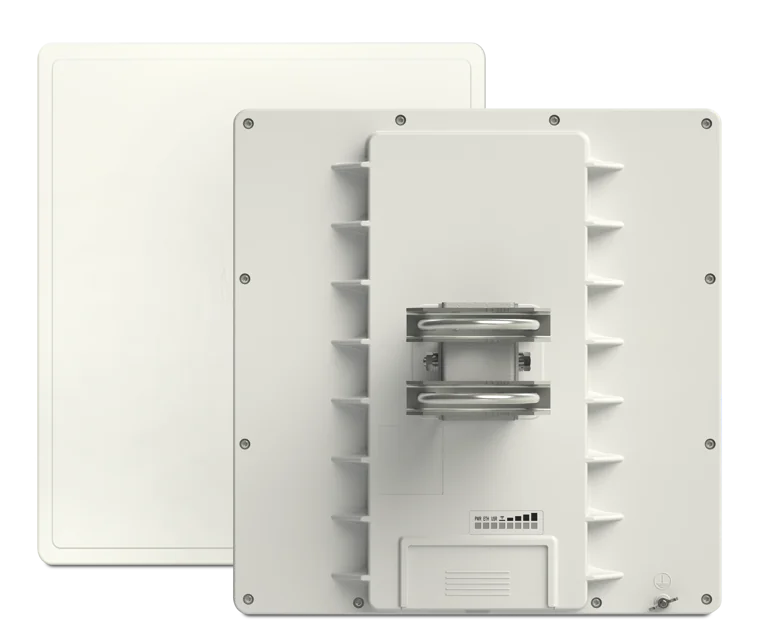

Mikrotik QRT 5 Outdoor Antenna

Original price was: KSh32,000.00.Current price is: KSh30,600.00. + VAT

KEY FEATURES

5GHz AP/Backbone/CPE, dual-chain, Gigabit Ethernet

Buy Online at Best Prices in Nairobi Kenya

MIKROTIK QRT 5 OUTDOOR ANTENNA SPECIFICATIONS AND DETAILS

Overview

The QRT 5 is a rugged outdoor flat panel antenna, with a built-in RouterBOARD. The device has a 24dBi antenna and a high-power 5GHz wireless transmitter.

Inside is the high-power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11n high speed wireless.

Easy to use and quick to deploy, QRT is ideal for point-to-point links.

– RB911G-5HPnD-QRT-US (USA) is factory-locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– RB911G-5HPnD-QRT (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Features

The MikroTik QRT 5 Outdoor Antenna is a high performance, long range wireless antenna designed to provide exceptional connectivity and coverage for outdoor network applications. Its robust features and rugged construction make it a dependable choice for various scenarios where reliable long distance wireless connections are essential.

The QRT 5 Outdoor Antenna’s design is truly impressive. Its sturdy and weather resistant enclosure ensures durability in even the harshest outdoor environments. This makes it an ideal solution for deployment in locations with challenging weather conditions, such as extreme heat, rain, or snow. Its ability to withstand the elements is a testament to its build quality, which ensures long-lasting performance.

What truly sets the MikroTik QRT 5 Outdoor Antenna apart is its remarkable range and signal strength. Equipped with a high gain directional antenna, it can establish long distance connections over several kilometers with ease. This feature is invaluable for applications like point-to-point links, wireless backhauls, and extending network coverage to remote areas, where traditional networking infrastructure might be impractical.

Tech Specifications

Details
Product code	RB911G-5HPnD-QRT
Architecture	MIPSBE
CPU	AR9342
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	309x320x50mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Warranty	Limited

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	12 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V

Wireless specifications

Details
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	24
Wireless 5 GHz chip model	AR9342
Wireless 5 GHz generation	Wi-Fi 4
