Mikrotik RB912 UAG Base Box
Original price was: KSh21,000.00.KSh19,800.00Current price is: KSh19,800.00. + VAT
KEY FEATURES
5Ghz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet
Buy Online at Best Prices in Nairobi Kenya
MIKROTIK RB912 UAG BASE BOX SPECIFICATIONS AND DETAILS
Overview

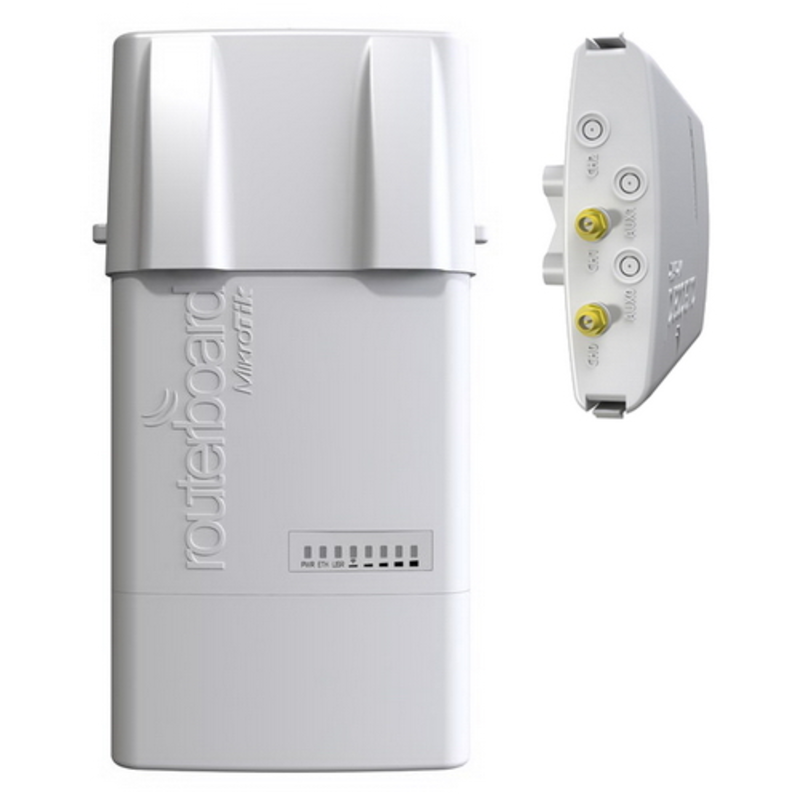

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.
Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount
– The factory locks the RB921UAGS-5SHPacT-NM-US (USA) for the 5170-5250MHz and 5725-5835MHz frequencies, and you cannot remove this lock.
– RB912UAG-5HPnD-OUT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Tech Specifications
| Details | |
| Product code | RB912UAG-5HPnD-OUT |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 246x135x50mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $89.00 |
Powering
| Details | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 12 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details | |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Wireless 5 GHz chip model | AR9342 |
| Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
| Certification | CE, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | –96 |
| MCS7 | 26 | -75 |
