Sale!

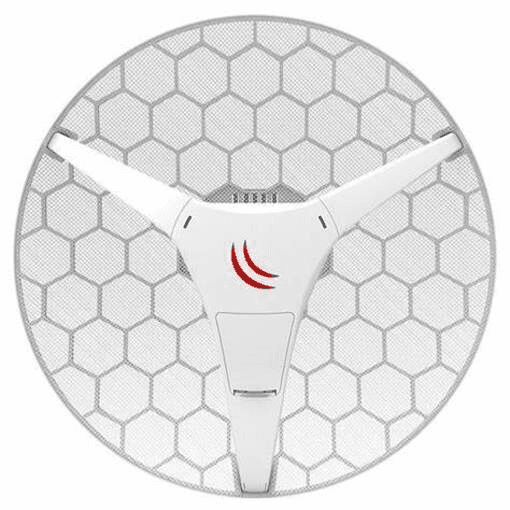

MIKROTIK RBLHG-5HND ANTENNA

Original price was: KSh15,250.00.Current price is: KSh14,400.00. + VAT

KEY FEATURES

Product code RBLHG–5nD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz

Buy Online at Best Prices in Nairobi Kenya

SKU: HB10493 Categories: Mikrotik Products, Mikrotik Radios

Description

MIKROTIK RBLHG-5HND ANTENNA SPECIFICATIONS AND DETAILS

Overview

The LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point-to-point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The grid design provides protection against wind, and integrating the antenna element directly into the wireless unit eliminates cable loss.

We have two versions available.

LHG 5-US (USA) is factory-locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. LHG 5 (International) supports the 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

About this item

The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna
This LHG is perfect for point-to-point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables
PoE in: Passive PoE; 10/100 Ethernet ports: 1; Wireless 5 GHz Max data rate: 300 Mbit/s
Size of RAM: 64 MB; Storage size: 16 MB; CPU nominal frequency: 600 MHz

Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

Tech Specifications

General

Product code RBLHG-5nD

Architecture MIPSBE

CPU AR9344

Has CPU core count 1

CPU nominal frequency 600 MHz

Dimensions Ø 391 x 222 mm; package 450 x 450 x 145 mm

License level 3

Operating System RouterOS

Size of RAM 64 MB

It has a Storage size of 16 MB

Storage type FLASH

Tested ambient temperature -40 to 70° C

Suggested price $59.00

Powering

PoE in Passive PoE

PoE in input Voltage 11-30 V

Number of DC inputs 1 (PoE-IN)

Max power consumption 6 W

Wireless

Antenna gain dBi for 5 GHz 24.5

Wireless 5 GHz standards 802.11a/n

Wi-Fi generation 4

Wireless 5 GHz Max data rate 300 Mbit/s

Has Wireless 5 GHz number of chains 2

Wireless 5 GHz chip model AR9344

Ethernet

Details

10/100 Ethernet ports 1

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity

6MBit/s 25 -96

54MBit/s 20 -80

MCS0 25 -96

MCS7 19 -75
