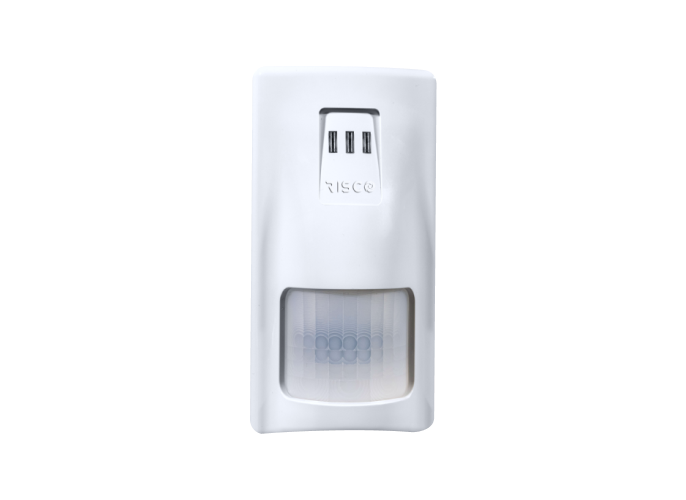

RISCO IWISE DT 15M ROKONET SPECIFICATIONS AND DETAILS

Overview

Risco iWise DT 15m detectors represent the pinnacle of motion detection technology, specially crafted for professional installations. Renowned for their exceptional capabilities, these detectors are trusted and deployed in thousands of locations across the globe, a testament to their reliability and performance.

At the core of their advanced technology lies the incorporation of both Anti-Mask and Anti-Cloak™ technologies. These innovative features set them apart in the realm of motion detectors, ensuring a robust defense against intrusion attempts.

The Anti-Mask technology is a formidable deterrent against attempts to obscure the detector’s view, providing an added layer of security that is essential in critical security applications. Meanwhile, the Anti-Cloak™ technology is designed to thwart efforts by intruders to conceal themselves from detection, a crucial feature that ensures that the detectors remain effective even in the face of sophisticated intrusion tactics.

In summary, the RISCO iWise DT 15m detectors are a preferred choice for professional installations, lauded for their cutting-edge technology and real-world reliability. Their incorporation of Anti-Mask and Anti-Cloak™ technologies reinforces their position as leaders in the field of motion detection, offering peace of mind and enhanced security for installations worldwide.”

Highlights

• Built-in Triple EOL resistors, jumper selectable
• Opto relays for defeating large magnets
• Cover and wall/corner tampers
• Corridor and Curtain lenses (optional)
• Model names:
• RK815DTG3 iWISE DTAM Grade 3, 15m (50′)
• RK825DTG3 iWISE DTAM Grade 3, 25m (82′)
• Optional lenses for iWISE DT AM G3
• RL115CV 12m (40’) Curtain
• RL15V 15m (50’) Corridor
• RL17V 23m (75’) Corridor

Technical Specification

• Type: Indoor DT
• PD6662, EN50131-2-4: Grade 3
• RISCO Bus: Special iWISE® Bus Models
• Microwave: X-band
• PIR Sensor: Dual element
• Anti-Cloak Technology
• Green Line
• Intelligent Digital Signal Processing
• Digital detector and true temperature compensation
• Built-in EOL resistors
• Anti-mask method: Active IR
• Coverage and lenses supplied: Wide angle 15m, 25m (50’, 82’)
• Optional Lenses: Corridor lens: 15m (50’) or 23m (75’) Curtain lens: 12m (40’)
• Mounting Height: 2.1m-2.7m (7-9’)
• Optional Accessories: Wall swivel with back tamper, wall/ corner swivel, ceiling swivel
