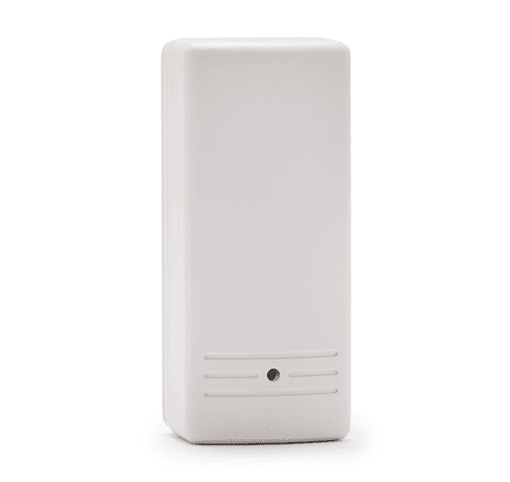

RISCO WIRELESS SHOCK AND CONTACT 433MHZ SPECIFICATIONS AND DETAILS

Overview

The Risco Wireless Shock and Contact Detector is an all-in-one solution that excels in internal security applications. This versatile detector cleverly combines the functionalities of a shock detector and a door/window contact detector within a single compact casing. Its primary objective is to fortify your property’s defenses against intrusion.

At the heart of this detector lies an advanced digital microprocessor, a key component that meticulously analyzes the vibration signals it receives from the integrated piezo electric sensor. This cutting-edge technology ensures that even the slightest disturbance or shock is promptly detected, triggering your security system’s response.

But that’s not all; this detector goes a step further by incorporating a reed switch. This additional safeguard ensures that not only is the opening of doors and windows detected, but it also provides protection against any attempts to tamper with the detector using large magnets. This multi-layered approach to security means that your property remains protected against various forms of intrusion.

What sets this detector apart is its capacity to function as both an advanced shock detector and a door/window contact on two separate wireless zones. This means that it’s not just a standalone device; it seamlessly integrates with your larger security system, providing enhanced flexibility and coverage.

In conclusion, the Risco Wireless Shock and Contact Detector represents a holistic approach to internal security. Its innovative design, advanced technology, and multi-functionality make it an invaluable addition to your security setup. It’s a reliable guardian, ensuring that your property remains secure and protected against a wide range of potential threats.

Highlights

• Tri-color LED enables accurate and reliable calibration, with over-sensitive and under sensitive indications
• Digital Microprocessor with Intelligent Digital Signal Processing
• Shock with door/ window contact includes two separate channels
• Includes 3V long-life lithium battery
• Compatible with RISCO systems: Agility™, WisDom, ProSYS™ Plus, LightSYS™
• Available in 868MHz and 433MHz
• Model name: RWT62

Technical Specification

• Battery Type: CR123 3V Lithium Battery
• Current Consumption: 10μA standby
• Frequency: 433.92 / 868.65 MHz
• Supervision Transmission: 868.65 MHz model: every 15 minutes
• 433.92 MHz model: every 65 minutes
• Modulation Type: ASK
• Battery Life: 3 years depends on usage
• Size: 81 x 35 x 32 mm (3.2 x 1.37 x 1.27 in.)
• RF immunity: According to EN-50130-4
• Operating temperature: 0°C to 55°C (32°F to 131°F)
• Storage temperature: -20°C to 60°C (-4°F to 140°F)
• Maximum humidity: 95% non-condensing
