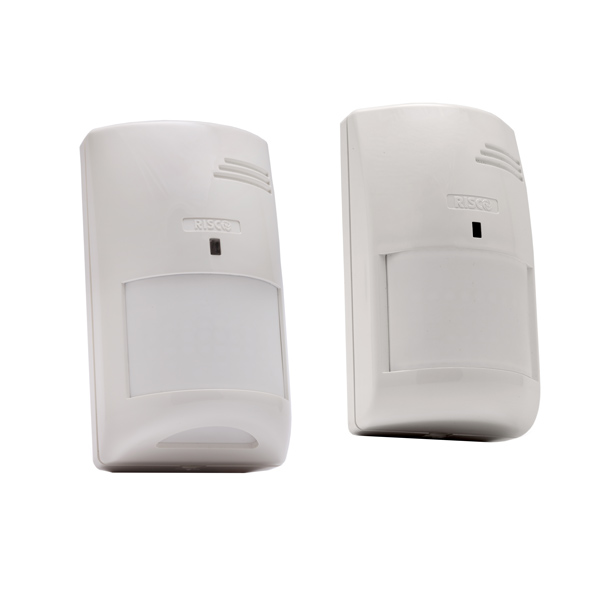

RISCO ZODIAC PRO PIR MOTION SENSOR 12M SPECIFICATIONS AND DETAILS

Overview

The RISCO ZoDIAC PRO stands as a testament to exceptional design and performance. Crafted with precision, it has earned its reputation as a best-seller, thanks to its commitment to excellence in catch performance, its suitability for various security applications, and its remarkable false alarm immunity.

One of its standout features is the internal cable duct, a thoughtful design element that simplifies the wiring process. This means that whether you’re an experienced technician or a DIY enthusiast, you’ll find the installation process straightforward and efficient. The ample space inside the sensor allows for organized wiring, reducing the likelihood of tangled cables and ensuring a neat and professional setup.

The RISCO ZoDIAC PRO takes false alarm prevention seriously. Its optical protective sleeve, combined with a white light-protected lens, offers robust protection against nuisance alarms. This means you can trust the sensor to discern between genuine threats and harmless events, reducing the stress of dealing with frequent false alerts.

Installation couldn’t be easier, thanks to the supplied free swivel. This versatile feature empowers you to position the sensor exactly where you need it, ensuring optimal coverage and detection performance.

When you choose the RISCO ZoDIAC PRO, you’re not only investing in a top-selling security solution but also gaining peace of mind through its outstanding performance, meticulous design, and commitment to false alarm prevention.

Highlights

• Full 12x12m (40’x40’) coverage
• Improved false alarm immunity
• High RFI immunity above 20V/m
• Free swivel for wall/ceiling mounting
• Internal cable duct and ample wiring space for easy installation
• Model names:
• RK410 Zodiac Pro
• RL407 Long Range Lens for Zodiac Pro

Technical Specification

• Pet immunity: rodents
• Operating voltage 9 to 16VDC regulated
• Current consumption: 12mA
• Alarm Contacts: NC, 100mA, 24 VDC maximum
• Tamper Contacts: NC, 100mA, 24 VDC maximum
• Alarm Time: 2.2 seconds minimum
• Adjustable Pulse Count: 1,2,3
• Temperature Compensation: Automatic, thermistor controlled
• Swivel adjustment: Horizontal ±25°, Vertical +5°, -20°
• Optical filtering: White light protection, pigmented lens
• RF Immunity (10 MHz to 1GHz): 20 V/m
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 55°C (-4°F to 131°F)
• Dimensions: 107 x 58 x 39mm (4.2 x 2.3 x 1.5in)
