RJ45 CAT 5E SPECIFICATIONS AND DETAILS

Description

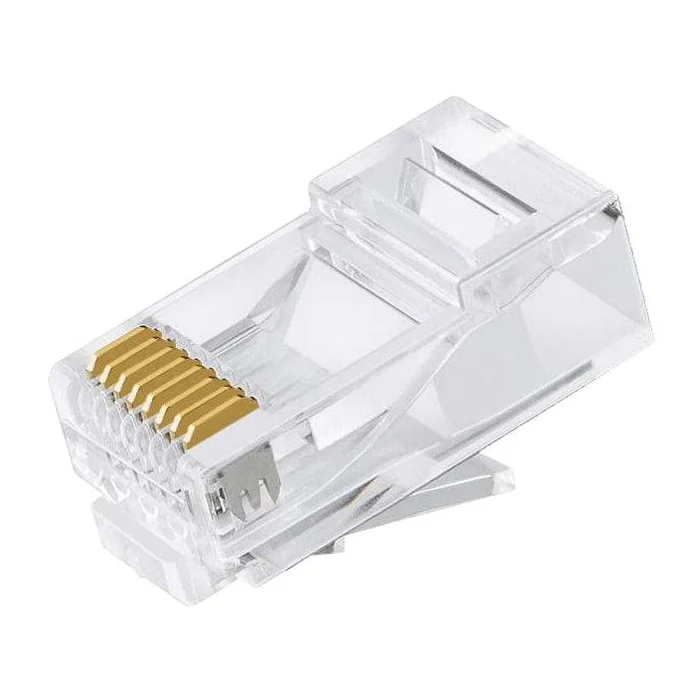

RJ45 CAT 5E UTP Easy Pass Through Connector, 8P8C Ethernet Modular Plug for Cat-5e Stranded and Solid Unshielded Wire and LAN Network Cable

Overview

This RJ45 connector is the latest design that is sleek-looking and robust for frequent unplugging. The Snagless design prevents the cable from snagging on the other cable next to it. Unlike the normal clip, the Snagless clip will not break easily. Platinum 50μm Gold Plated blade with a 3 prong design for reliable performance on both stranded and solid wires. It supports 23-26AWG wires. (But you still need to check if the insulation diameter fits the connector wire holes.) iSelek RJ45 8P8C connectors can be used for both T-568A or T-568B RJ45 universal pinouts for secure terminations and consistent connections without hassle.

Highlights

• 20 Times Bending – The polycarbonate clip can sustain up to 20 vertical bends and will not harden and break over time.
• 3-Prong blade enhances the connection between the cable and the connector.
• 50 micron gold-plated endure more insertion cycles and provide stable transmission.
• The combustion will not sustain for more than 10 seconds after applying a controlled flame.
• The operating ambient temperature is -40°C ~ 70°C.
• With iSelek RJ45 boots, the iSelek Snagless connector with the boot can sustain up to 66 lbs. (30 kgs.) of tensile strength.
• Without iSelek RJ45 boots, you still can enjoy the iSelek Snagless design connectors.

Tech Specifications

Product Specifications

Specification for this product family
