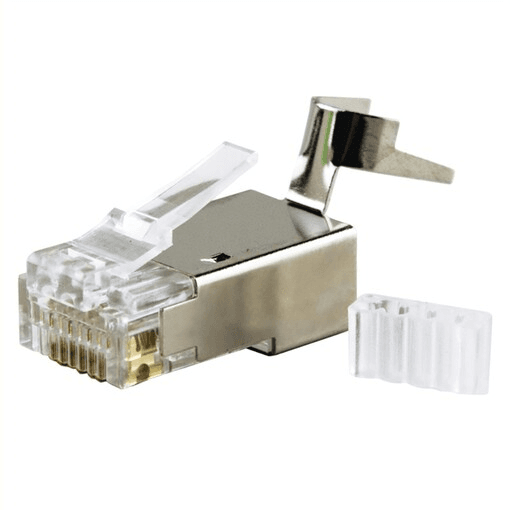

RJ45 CAT 7 PLUG SPECIFICATIONS AND DETAILS

Description

Cat 7 Connectors 50u Nickel Plated Shielded RJ45 Modular Plug for 23 AWG Ethernet Cable Solid and Stranded Cat.6A Cat.7 Cable

Overview

Backward Compatible

This connector is backward compatible, compatible with RJ45 Cat7, Cat6A, Cat6, Cat5E sockets. Supports the network speed of CAT7 10Gbps. Get higher network speed shield head, fully release the speed of the family or office network.

Shielded Shell

Metal shell signal anti-Anti-interference, maximize shielded nearby interference signals. Let your home and office network be more stable.

Made for Many Devices

Made for PC, Notebook, Router, Switch, Wireless Equipment, Hub, ADSL, TV, Digital Equipment, and so on. 10-pack or 50-pack to meet your connection needs.

General Highlights

• Type: Cat7/Cat6A RJ45 8P8C 8 contacts shielded head.
• Shell Material: Metal shielded shell, no rust.
• Chip Material: 50U” thicken gold-plated.
• Wire Hole Size: 1.5mm (suitable for 1.35mm-1.45mm cable).
• Backward Compatible: Compatible with RJ45 Cat7, Cat6A, Cat6, Cat5E, sockets.
• Cable Type: Suitable for 23AWG multi-strand and single-strand cables.
• Connection Standard: T568A and T568B connection schemes.
• Applicable Equipment: Computers, Notebooks, Routers, Switches, Wireless Equipment, Hubs, ADSL, TV, Digital Equipment.

Feature Highlights

1. Oversized Wire Hole Easy Wiring, Transparent brackets make it easy to see the wire sequence and ensure accurate wiring.
2. RJ45 Plug Cat7 Cat6a, Suitable for cat7 cat6a cable. Support inner conductor 23 AWG;The Insulated core diameter must be 1.35mm-1.45mm. Dovetail Clip Design, Make the cable firm and not loose.
3. Applicable to solid wire and strand wire. this Cat7 connectors can work as one piece Modular Plug, but we still keep the design of load bar and put them in the package. With or without load bar, it depends on you.
4. Copper alloy with 50u ” gold plated, Do Not Rust, Thick gold-plated terminals, reduce signal interference and improve signal transmission quality.
5. We listen to each customer’s voice, offering quick response and friendly customer service, if there is any issue with our product please just simply contact us.

Tech Specifications
