RJ45 CONNECTORS SFTP SPECIFICATIONS AND DETAILS

Description

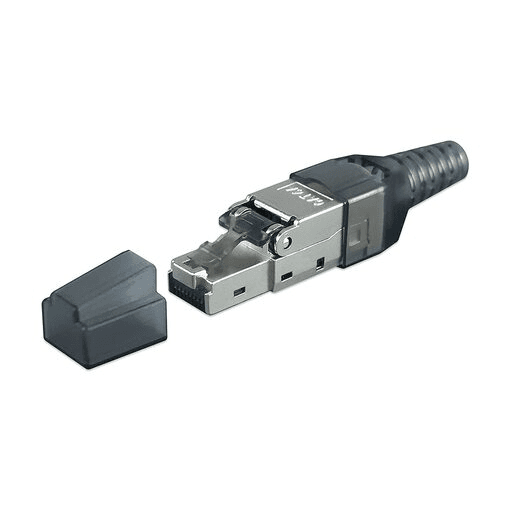

RJ45 connectors Cat6A Tool-Free Shielded RJ45 Termination Plug Connector, Zinc Alloy Metal Housing Ethernet Toolless Plug for 23~26 AWG SFTP/UFTP/FUTP Cables

Overview

Complete Resusable Set

Cat6A RJ45 full spec field termination connectors support 500Mhz speeds and up; perfect for high-speed applications.

Easy Tool-less System

1. Zinc alloy housing provides ultra EMI/EFI shielding.
2. Shielded and threaded boot cuff

Count the Quality

1. Gold-plated pins for best performance.
2. PCB circuitry reduces NEXT (Near-End Crosstalk).

Count the Quality

1. Heavy-duty Shielding.
2. Durable snag-less latch.

Easy Tool-free System

1. Easy to see 568a & 568b labelled wiring harness makes pin-out easy.
2. Cut off the rings of the boot for bigger cable OD, 0.27in/0.29in/0.31in/0.33in/0.35in are available.
3. RJ45 dust cover.
4. Copper foil shielding tape.

Highlights

• Cat6A ethernet connector is designed for fast and easy installation without crimping tools.
• Fully backwards compatible with Cat 5e or Cat 6; Cat6A Shielded connector supports 23 to 26 AWG solid or stranded Shielded wire with an outside diameter between 6.0 and 7.5mm, support 10Gb Ethernet.
• Zinc alloy housing provides superior shielding and mitigates alien crosstalk; Rugged metal alternative to RJ45 modular plugs.
• This product is made of plastic, all-copper gold-plated terminals, PCB board, and double-clamp fixed cable behind, which can be reused.
• IDC modules can be wired for T568A or T568B wiring.

Tech Specifications

Product Specifications

Specification for this product family

Enhance the efficiency and security of your network connections with our RJ45 Connectors SFTP (Shielded Foiled Twisted Pair). These connectors are a reliable and high-performance solution designed to ensure the integrity of your data transmissions.

Here’s an extended description of the RJ45 Connectors SFTP, emphasizing their features and the benefits they bring to your network infrastructure.
