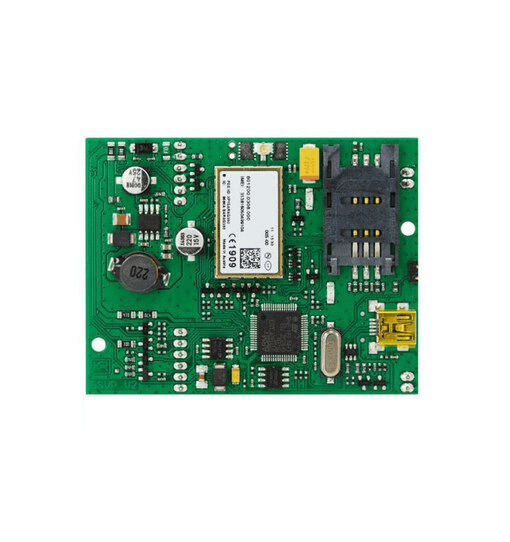

Secolink GSM Module
Original price was: KSh17,000.00.KSh16,000.00Current price is: KSh16,000.00. + VAT
KEY FEATURES
Secolink GSM module allows to control the SECOLINK alarm system remotely, over the GSM network.
Buy Online at Best Prices in Nairobi Kenya
SECOLINK GSM MODULE SPECIFICATIONS AND DETAILS
Overview
A customer can command the alarm system by calling GSV6U phone number through phone keypad in the same way as he (she) do it by using the alarm system keypad. When GSV6U is installed in system, the installer can remotely adjust system settings with end-user permission.
Technical Specification
| Features | GSV6U | GSVU |
| Description | GSM/GPRS communicator for SECOLINK modular systems | GSM/GPRS communicator for SECOLINK modular systems |
| Product type | Alarm system module | Alarm system module |
| Data bus interface | KRBUS, SERIAL | Internal KRBUS |
| Data bus protocol | KRBUS | KRBUS |
| Alarm message for CMS | CID by GPRS | CID by GPRS |
| Reporting protocols for CMS | E2, FIBRO, Kodinis KSP | E2, FIBRO, Kodinis KSP |
| Compatible with SECOLINK control panels | All SECOLINK control panels | “P” series control panels only |
| Compatible with SG-SYSTEM II , III IP card | Yes | Yes |
| Phone Numbers for messaging | 5 | 5 |
| Alarm message for end user | GSM call, SMS | GSM call, SMS |
| Alarm message for end user by voice clip | Yes | Yes |
| Voice guide for end user | Yes | Yes |
| Recordable audio alarm messages | Yes | Yes |
| Available language for SMS | English | English |
| Available language for voice clip and guide | English | English |
| System remote control by GSM call | Yes | Yes |
| Ambient temperature value return by SMS | Yes (KM20BT, KM24A/G) | Yes (KM20BT, KM24A/G) |
| Remote system control by Android smart phone application | Yes | Yes |
| Remote system control by iPhone smart phone application | Yes | Yes |
| Maximum wiring distance to CP | 300 m | – |
| Power supply (DC) | 9 – 14 V | 9 – 14 V |
| Current consumption | 180 mA | 180 mA |
| Overall dimensions W x H in mm | 71 x 76 | 71 x 76 |
| Environmental compliance | ROHS | ROHS |
| Operating temperature | From -10oC to +50oC | From -10oC to +50oC |
| Interface for communicator settings programming | USB | USB |
| Interface for communicator firmware updating | USB | USB |
| Remote system programming via internet server by using MASCAD | Yes | Yes |
