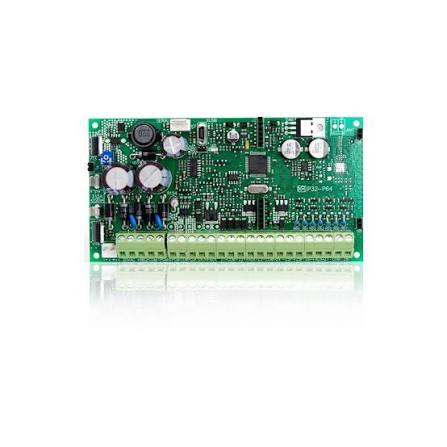

Secolink GSV4B Module Kit
Original price was: KSh15,000.00.KSh14,000.00Current price is: KSh14,000.00. + VAT
KEY FEATURES
Secolink GSV4B Kit Economy class alarm system for small real estate objects.
Buy Online at Best Prices in Nairobi Kenya
SECOLINK GSV4B MODULE KIT SPECIFICATIONS AND DETAILS
Overview
Supports up to 7 zones (5 zones on control panels board and 2 on keypad). Kit includes control panel GSV4B. GSM/GPRS communicator, keypad KM20B and fireproof, plastic case CAS6 with integrated transformer. Alarm system available only as a kit.
Technical Specification
Features | GSV4B |
| Description | Control panel with integrated GSM/GPRS module |
| In-built wired zones on board | 5 |
| Maximum wired zones | 7 |
| PGM on board | 1 |
| Maximum PGM | 3 |
| User codes | 5 |
| Defaulting user code | Yes |
| Key switch zone | Yes |
| Partitions | 1 |
| System timers | 16 |
| Event log size | 256 (with keypad 512) |
| Data bus protocol | KRBUS |
| Reporting to CMS format | CID via GPRS |
| Total number of protocols, used for CMS reporting | E2 (Enigma), FIBRO (Sur-gard), CSV (Patriot), SIA |
| Compatible with SG-SYSTEM II, III IP card | Yes |
| Alarm message for end user | GSM calls, SMS |
| Alarm message for end user by voice clip | Yes |
| Recordable audio alarm messages | Yes |
| Available language for SMS | English, National |
| Remote system control by Android or IPhone application | Yes |
| Zone speed (sensitivity) | 0.1 – 2.5 sec. |
| Zone loop (detector) type | NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL |
| Arming mode | Away, Max Away, Night, Stay. |
| Zone definition | Entry/exit, entry/exit forced, interior, interior night armed, follower, interior night follower, perimeter, instant, PGM control; 24h: burglary, panic silent. panic audible, tamper, fire, smoke, fire button, medical button, fire supervisory, low water level, RF Jam, gas detected, water leakage. high temperature, low temperature. |
| Zone attributes | Enable bypass, no alarm, arm when door is closed, entry route, exit route, fire verification, limitation of alarms, limitation of reporting, pre-alarm, armed night. |
| PGM definition | Fire alarm, fire/burglary alarm, burglary alarm, tamper alarm, technical alarm, selected alarms, chime, zone violation, bypass status, selected trouble. exit/entry warning, wxit arm status, full arm status, arm/disarm acknowledge, power supply, resettable power supply, fire power supply, timer, mono/bi switch. |
PGM attributes | Inversion, pulsation, latch, pre-alarm, arm notification, arming failure notification, arm notification, disarm notification, clear alarm notification. |
| Rated voltage of power supply (AC) | ~20 V |
| Minimum AC voltage | ~16 V |
| Maximum AC voltage (Note: higher than ~22 V voltage can damage GSV4) | ~22 V |
| Maximum long term output current of GSV4 (I+AUX + I+BELL + battery charge) | 0.7 A |
| Maximum current of slow blowing fuse used in primary AC | 250 mA |
| Maximum AC power consumption | <30 mA |
| Minimum voltage on +AUX, +BELL, outputs | 12 V |
| Maximum voltage on +AUX, +BELL, outputs | 13.9 V |
| Maximum current out of +AUX | 0.25 A |
| Maximum current out of +BELL (without battery) | 0.2 A |
| Maximum current out of +BELL (with battery) | 2 A |
| Short circuit, overload protection of +BELL, +AUX | electronic |
| Battery charge +BELL, +AUX current measurement | Yes |
| Failed (waste) backup battery disconnection | Yes |
| Maximum battery charging current | 0.25 A |
| Maximum current of fast blowing fuse used in battery | 3.15 A |
| GSV4 disconnects battery when its voltage less than | 9.5 V |
| Recommended backup power supply | 12 V, 7 Ah / 20 Hr |
| Operational compliance | EN50131, Grade2 |
| Overall dimensions W x H in mm | 120 x 64 |
| Environmental compliance | ROHS |
| Operating temperature | From -10oC to +50oC |
| Interface for control panel settings programming | USB |
| Interface for control panel firmware update | USB |
| Remote control panel settings programming | Yes, via www.alarmserver.net
|
Features | KM20B |
| Description | Alarm system keypad |
| On-Board zones | 2 |
| On-Board PGM | – |
| Ambient temperature measurement | – |
| LCD type | 2 rows, 16 symbols each |
| Keys in keypad | 20 |
| Programmable fast keys (F-Keys) | 32 |
| Data bus protocol | KRBUS |
| Zone loop (detector) type | NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL |
| Maximum wiring distance to CP | 300 m |
| Power supply | 9 – 14 V |
| Voltage measurement on keypad | Yes |
| Current consumption | Backlight on 100 mA, baclight off < 50 mA. |
| On-Board sounder | Buzzer |
| Backlight color | Display = blue, keypad = yellow |
| Character set | Latin, Russian, Greek, East European, West European, Azeri, Turkish, Scandinavian. |
| User interface type | Advanced, Simple, Baltic, Asian. |
| Overall dimensions W x H in mm | 115 x 95 |
| Environmental compliance | ROHS |
| Operating temperature | 0oC up to +50oC |
| Interface for keypad settings programming | USB |
| Interface for keypad firmware updating | USB |
