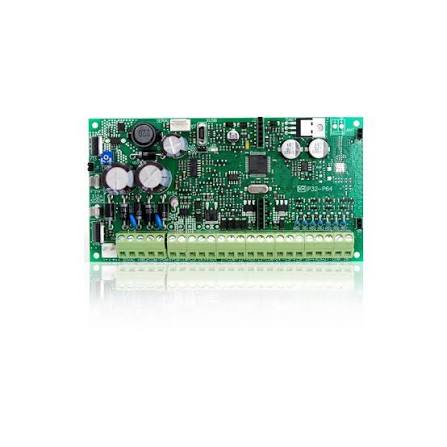

Secolink Intruder Alarm Panel Pas Series

Name: Secolink Intruder Alarm Panel Pas Series
Brand: simple
SKU: HB15167
Availability: InStock

Original price was: KSh15,000.00.Current price is: KSh14,000.00. + VAT

KEY FEATURES

Secolink Intruder alarm panel PAS series are designed for small businesses and individual property protection.

Buy Online at Best Prices in Nairobi Kenya

SKU: HB15167 Categories: Intruder Burglar Alarm System, Secolink Alarm Brand: Secolink

Description

SECOLINK INTRUDER ALARM PANEL PAS SERIES SPECIFICATIONS AND DETAILS

Overview

Currently, these models are being manufactured: PAS808M, PAS816, PAS832, P16, P32, P64 that control 8, 16, 32, 64 intrusion detection sensors (zones), respectively. Secolink Intruder alarm panel models protect up to 4 partitions (areas), and the number of users who can control them ranges from 5 to 31, depending on the panel model (excluding minus panels).

Click on the left-side menu bar “Control panels” to find more technical information. The Secolink Intruder Alarm Panel performs all necessary functions and suits the protection needs of apartments and offices. It also includes a function for calling the user’s phone. More technical information can be found in the table below.

Technical Specification

Features	PAS808M	PAS816	PAS832
Alarm system concept	Wired modular system	Wired modular system	Wired modular system
On-board wired zones	8	8/16 (doubling)	8/16 (doubling)
2-wire smoke detector input	–	–	–
On-board wireless zones	–	–	–
Maximum zones in system	8	16	32
On-board PGM	3	3	3
Maximum PGM in system	8	16	16
User + installer codes	5+1	31+1	31+1
Duress code	X1, X2, X3, X4 (when X4 = X4 + 1)
Defaulting user code	Yes	Yes	Yes
Key switch zone	–	Yes	Yes
Partitions	4	4	4
“Shared” partition (common area)	–	Yes	Yes
System timers	–	16	16
Maximum keypads/modules in system	7	15	15
Event log buffer	512	512	512
PSTN communicator	In-built	In-built	In-built
In-built interface for backup communicator	TTL Serial	TTL Serial	TTL Serial
Data bus protocol	KRBUS	KRBUS	KRBUS
Total phone numbers: CMS reporting + personal dialing	4	4	4
Maximum phone numbers for personal dialing	Up to 4	Up to 4	Up to 4
Maximum phone numbers for CMS reporting	Up to 4	Up to 4	Up to 4
Reporting protocol	Contact ID	Contact ID, 4×2	Contact ID, 4×2
Voice guide for system control over PSTN	–	PAS816 V3 only	PAS832 V3 only
Voice guide for system programming over PSTN	–	PAS816 V3 only	PAS816 V3 only
“Roller” detector type	–	Yes	Yes
“Vibration” detector type	Yes	Yes	Yes
“Vibration” zone speed (sensitivity)	0.01 – 0.25 sec.	0.01 – 0.25 sec.	0.01 – 0.25 sec.
Normal zone speed (sensitivity)	0.1 – 2.5 sec.	0.1 – 2.5 sec.	0.1 – 2.5 sec.
Zone loop (detector) type	NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL, Vibration	NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL, Vibration, Roller
Arming mode	Away, Max Away, Night, Stay.
Zone definition	Entry/exit, entry/exit forced, interior, interior night armed, follower, interior night follower, perimeter, instant, PGM control; 24h: burglary, panic silent, panic audible, tamper, fire, smoke, fire button, medical button, fire supervisory, low water level, RF Jam, gas detected, water leakage, high temperature, low temperature
Zone attributes	Enable bypass, no alarm, arm when door is closed, entry route, exit route, fire verification, limitation of alarms, limitation of reporting, pre-alarm		Enable bypass, no alarm, arm when door is closed, entry route, exit route, fire verification, limitation of alarms, limitation of reporting, pre-alarm, armed night
PGM definition	Fire alarm, fire/burglary alarm, burglary alarm, tamper alarm, technical alarm, selected alarms, chime, zone violation, bypass status, selected trouble, exit/entry warning, exit/arm status, full arm status, power supply, resettable power supply, fire power supply, timer, mono/bi switch
PGM attributes	Inversion, pulsation, latch, pre-alarm, arm notification, arming failure notification, disarm notification, clear alarm notification
Rated voltage of power supply (AC)	~20 V	~20 V	~20 V
Minimum AC voltage (note: ~16 V input voltage lets control panel to generate max 0.7 A output current)	~16 V	~16 V	~16 V
Maximum AC voltage (Note: higher than ~22 V voltage can damage control panel)	~22 V	~22 V	~22 V
Maximum long term output current of control panel (I+AUX + I+BELL + I+PGM + battery charge):	?1.2 A	?1.5 A	?1.5 A
Maximum current of slow blowing fuse used in primary AC	250 mA	250 mA	250 mA
Maximum AC power consumption	150 mA	150 mA	150 mA
Minimum voltage on +AUX, +BELL, +PGM outputs	12 V	12 V	12 V
Maximum voltage on +AUX, +BELL, +PGM outputs	13.9 V	13.9 V	13.9 V
Maximum current out of +AUX	+0.8 A	+1 A	+1 A
Maximum current out of +BELL	+0.8 A	+2 A	+2 A
Maximum current into -PGM	-0.05 A	-0.05 A	-0.05 A
Maximum current out of +PGM	+0.8 A	+0.9 A	+0.9 A
Short circuit, overload protection of +BELL, +PGM, +AUX	Electronic	Electronic	Electronic
Battery charge, +BELL, +AUX current measurement	–	Yes	Yes
Failed (waste) backup battery disconnection	–	Yes	Yes
Maximum battery charging current	+0.4 A	+0.4 A	+0.4 A
Maximum current of fast blowing fuse used in battery circuit	3.15 A	3.15 A	3.15 A
Control panel disconnect battery when its voltage less than	9.5 V	9.5 V	9.5 V
Recommended backup battery	12 V, 7 Ah / 20 Hr	12 V, 7 Ah / 20 Hr	12 V, 7 Ah / 20 Hr
Operational compliance	+EN50131, Grade2	+EN50131, Grade2	+EN50131, Grade2
Overall dimensions W x H in mm	145 x 77	145 x 77	145 x 77
Environmental compliance	ROHS	ROHS	ROHS
Operating temperature	-10oC up to +50oC
Production status	In production	V2 discontinued, V3 in production	V2 discontinued, V3 in production
Latest firmware version	v0.03
