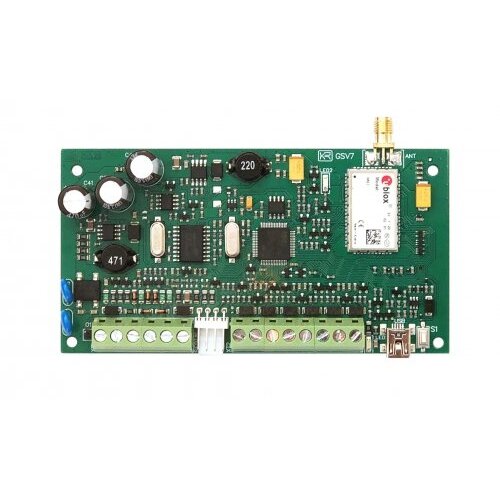

Secolink Universal communicator GSV7 Alarm GSM/GPRS Kit
Original price was: KSh19,000.00.KSh18,000.00Current price is: KSh18,000.00. + VAT
KEY FEATURES
- Type : Communicator
- Manufacturer : Secolink
- Warranty : Limited
- Condition : New, Unused
Buy Online at Best Prices in Nairobi Kenya
SECOLINK UNIVERSAL COMMUNICATOR GSV7 ALARM GSM/GPRS KIT SPECIFICATIONS AND DETAILS
Overview
GSV7 is a new version of GSV5. Communicator is designed to be used in objects along with other manufacturers alarms systems. It gives options to report to the receiver of CMS, to control and monitor the system with the app SECOLINK PRO, SMS messages or phone call. The main differences from the previous version include a 4G data channel, improved PSTN line signal reception, a repositioned Status LED for better visibility, a relocated push switch for easier access without removing the plastic, remote firmware updates, and a special pin for powering an optional relay.
Technical Specification
| Features | GSV7 |
| Description | Versatile GSM/GPRS communicator |
| 3 different versions | • GSV7 for 2G (900/1800. Europe, Asia, Africa, Brazil) • GSV7.4X for 2G, 3G (multi region) • GSV7.M1 for 2G, CAT M1, IoT NB (multi region) |
| Product type | Communicator |
| In-built wired zones on board | 6 |
| On-Board (open collector type) PGM | 2 |
| Reporting to CMS format | CID by GPRS |
| Reporting protocols for CMS | E2 (Enigma), FIBRO (Sur-gard), CSV (Patriot), SIA |
| Compatibility with control panels via KEYBUS | PC5xx, PC14xx, PC15xx, PC16xx, PC18xx |
| Compatibility with control panels via SERIAL | SP4xxx, SP6xxx, SP7xxx, EVOxxx, MG5xxx |
| Compatible with SG-SYSTEM II , III IP card | Yes |
| Alarm message for end user | SECOLINK PRO app, GSM call, SMS |
| Available language for voice guide | English (available other languages) |
| Available language for SMS | English (available other languages) |
| DTMF converting from PSTN to GPRS | Yes (one way) |
| Available in plastic enclosure | Yes |
| Maximum current into -PGM1 | -0.05 A |
| Maximum current into -PGM2 | -0.05 A |
| Power supply | |
| Power supply | 12-19V (DC) or 16.5V (AC) |
| Current consumption | 50 mA |
| Current consumption with all PGM’s | 260 mA |
| Overall dimensions W x H in mm | 120 x 64 |
| Environmental compliance | ROHS |
| Operating temperature | From -10oC to +50oC |
| Interface for communicator settings programming | USB, SMS messages |
| Interface for communicator firmware updating | USB, GPRS |
