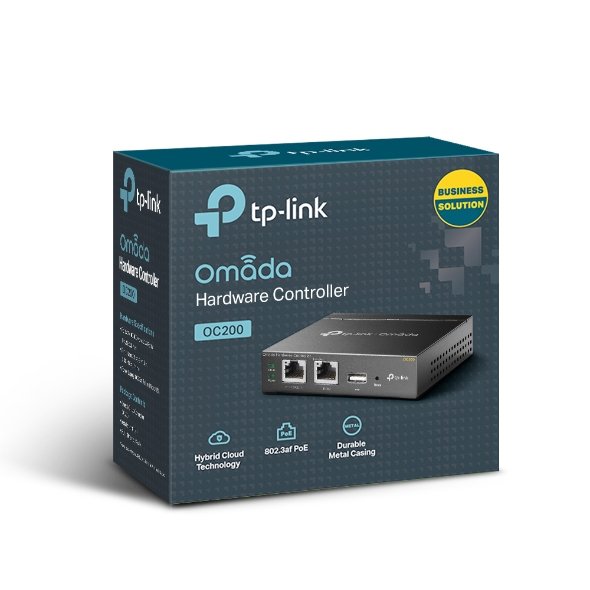

TP-Link OC200 Omada Hardware Controller

TP-Link OC200 Omada Hardware Controller

The TP-Link OC200 Omada 2-Port On-Premises Controller is designed to provide centralised management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

Key Features

• Centralised Management: Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers.
• Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
• On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
• Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports.
• Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
• Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
• Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
• Easier Network Maintenance: WiFi heatmap simulator, visualisable network report, and batch & multi-site management benefit network maintenance.

Dedicated In Network Centralised Management

The OC200 Omada Cloud Controller dedicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

Free Cloud Management – Anywhere, Anytime

Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.

Industry-Leading Hardware Design

Equipped with an advanced design and the latest chipset, OC200 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.

Guest Network with Facebook Wi-Fi and SMS Login

Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.

TP Link OC200 – Technical Specifications

Interface

• 2× 10/100 Mbps Ethernet Ports
• 1× USB 3.0 Port
• 1x Micro USB Port
• Power Supply: 802.3af/at PoE or Micro USB
• Dimensions: 3.9 × 3.9 × 1 in (100 × 98 × 25 mm)

Management

• Omada App: Yes
• Centralised Management
• Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
• Up to 1,000 clients
• Cloud Access: Yes
• L3 Management: Yes
• Multi-site Management: Yes
• Management Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

Other

• Certification: CE, FCC, RoHS
• Package Contents
• Omada Hardware Controller OC200
• Quick Installation Guide
• Ethernet Cable
• System Requirements: Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
• Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
