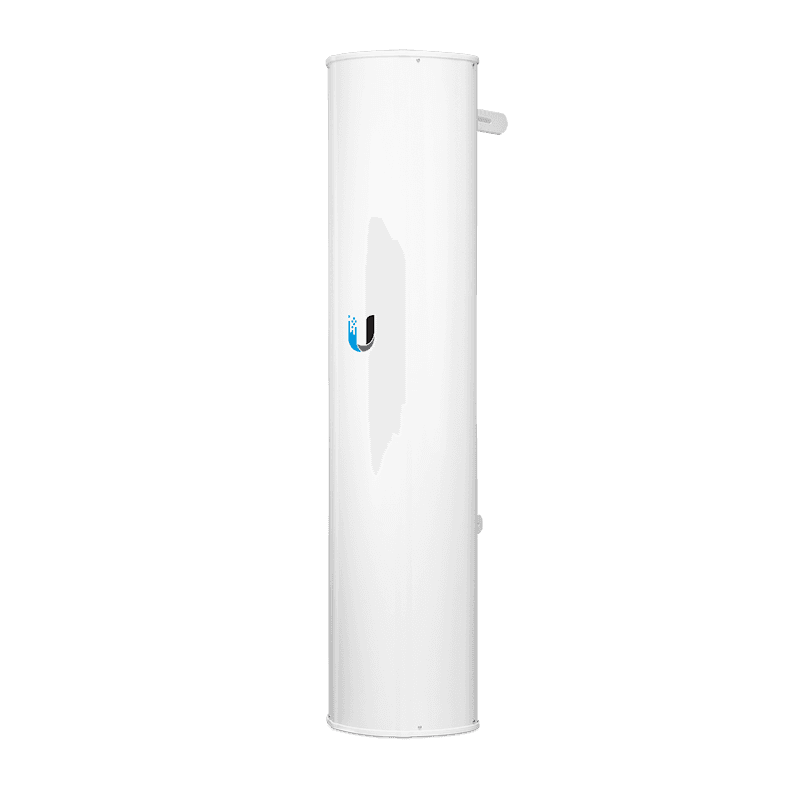

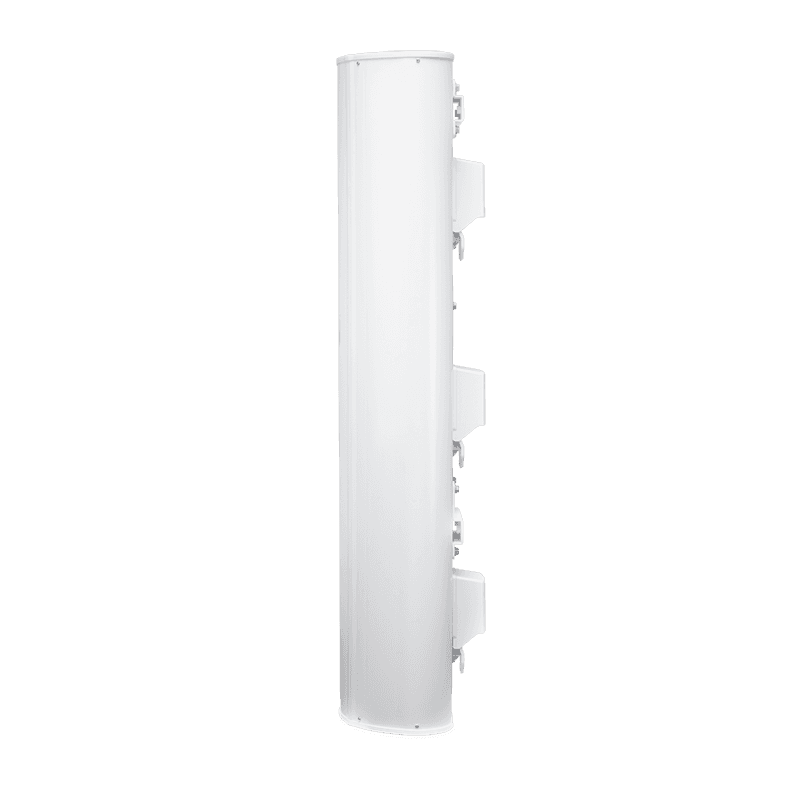

Ubiquiti airMAX airPrism AP-5AC-90-HD
Original price was: KSh80,000.00.KSh78,000.00Current price is: KSh78,000.00. + VAT
Channel Offset
| Channel Width | Separation |
| 10 MHz | 20 MHz |
| 20 MHz | 30 MHz |
| 30 MHz | 50 MHz |
| 40 MHz | 60 MHz |
Description of AirPrism AP-5AC-90-HD
Ubiquiti airMAX airPrism AP-5AC-90-HD Sector Antenna (model AP-5AC-90-HD) is specifically designed for Point-to-MultiPoint (PtMP) applications, particularly in high-density environments. It features three independent 30° beamwidth coverage areas, which optimize tower space and reduce installation costs. Ubiquiti airMAX airPrism AP-5AC-90-HD design allows for the mounting of up to three Rocket5ac Prism radios, each operating within its own 30° sector, thereby enhancing network capacity and performance.
Ubiquiti airMAX airPrism AP Specifications
| Antenna Characteristics | |
| Dimensions* | 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18″) |
| Weight** | 13.1 kg (28.9 lb) |
| Frequency Range | 5.15 – 5.85 GHz |
| Gain | 22 dBi |
| HPOL Beamwidth | 3 x 30° (6 dB) |
| VPOL Beamwidth | 3 x 30° (6 dB) |
| Electrical Beamwidth | 8° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.75:1 |
| Polarization | Dual-Linear |
| Cross-Polarization Isolation | 30 dB Min. |
| Interfaces | (6) RP-SMA Connectors (Weatherproof) |
| Compatible Radio | Rocket5ac Prism, model R5AC-PRISM |
| Wind Loading | 534 N @ 200 km/h (120 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
| ETSI Specification | EN 302 326 DN2 |
| Certifications | CE, FCC, IC |
Ubiquiti airMAX airPrism AP Applications:
- Point-to-point (PtP) and point-to-multipoint (PtMP) wireless connections
- Outdoor wireless networks for internet service providers (ISPs), wireless internet service providers (WISPs), and enterprises
- Rural broadband deployments
- Video surveillance and security systems
- IoT (Internet of Things) applications
