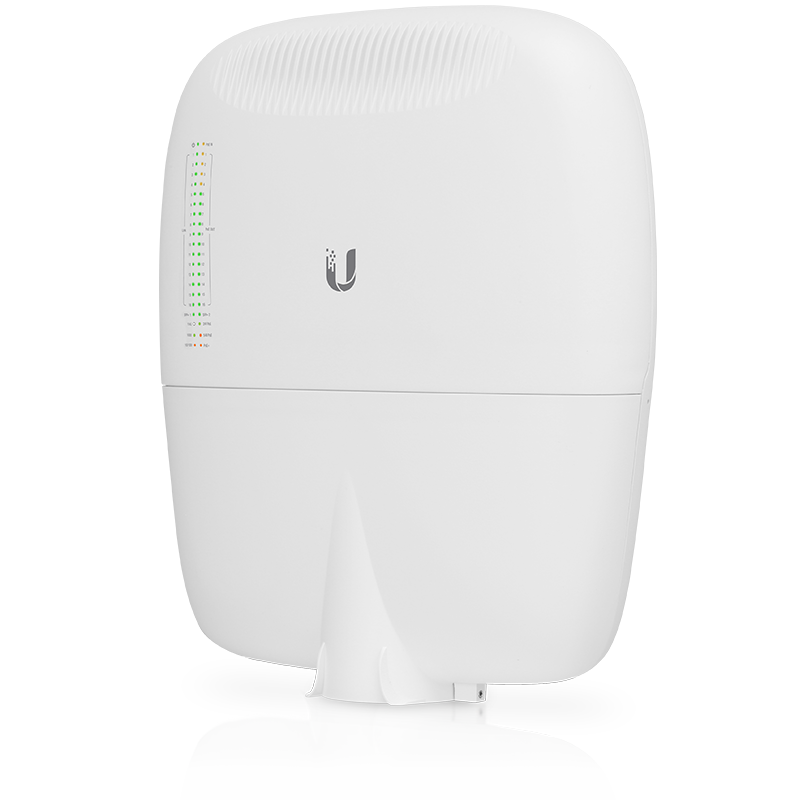

Ubiquiti EdgePoint EP-S16 WISP Control Point description

Ubiquiti Networks introduces the EdgePoint, part of the EdgeMAX platform. The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities. The EP-S16 is a Layer-2 switch with some layer-3 capabilities.

Product Features

•  Breakthrough in Tower Deployment: EdgePoint features FiberProtect to significantly reduce ESD failures and EMI
•  All-in-One Design: A single, compact controller efficiently eliminates clutter
•  Robust Construction: The ruggedized case withstands outdoor conditions, including wind, rain, and snow
•  Advanced Applications: Layer-2 link aggregation provides similar redundancy and increased performance benefits
•  Versatile Power Options: Powered by 54VDC or by PoE, the EP-S16 can support 54 or 24V passive PoE to power all Ubiquiti products, including airFiber and airMAX

Product Specifications

•  The Dimensions: 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50″)
•  Dimensions (w/ Wall Mount): 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15″)
•  Has a Weight: 3.4 kg (7.50 lbs)
•  Weight (w/ Wall Mount): 3.8 kg (8.38 lbs)
•  Enclosure Characteristics: Diecast Aluminum Alloy and Polycarbonate with UV Resistance
•  Max. Power Consumption: 40W (Excludes PoE Output)
•  Power Input: (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2)
•  Has Power Supply: Min. 54V / 0.8A (Excludes PoE Output Power)

Additional Specifications

•  VDC Input: 54VDC, 6A
•  Passive PoE Input: (2) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2
•  The Passive PoE Output: (4) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4 ; (12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16
• Power Monitoring: (1) DC Terminal Block, Input Power ; (2) RJ45, Ports 1 and 2, PoE Input or Output Power ; (14) RJ45, Ports 3 to 16, PoE Output Power
• Supported Voltage Range: 56 to 42VDC
• Button: Reset
• Processor: ARM Cortex-A9 400 MHz
• System Memory: 256 MB DDR3 RAM
• Code Storage: 32 MB
• Certifications: CE, FCC, IC
• Pole/Wall Mount: Yes
• Operating Temperature: -40 to 65°C (-40 to 149°F)
• The Operating Humidity: 10 to 90% Noncondensing

Product Includes

• (1) EP-S16 EdgePoint Switch
  • (1) Wall-Mount Bracket
  • (2) Metal Straps
  • (1) Cable Sleeve
  • (1) Gigabit PoE (54V, 1.5A) with Mounting Bracket
  • (1) Power Cord
  • (1) Quick Start Guide
