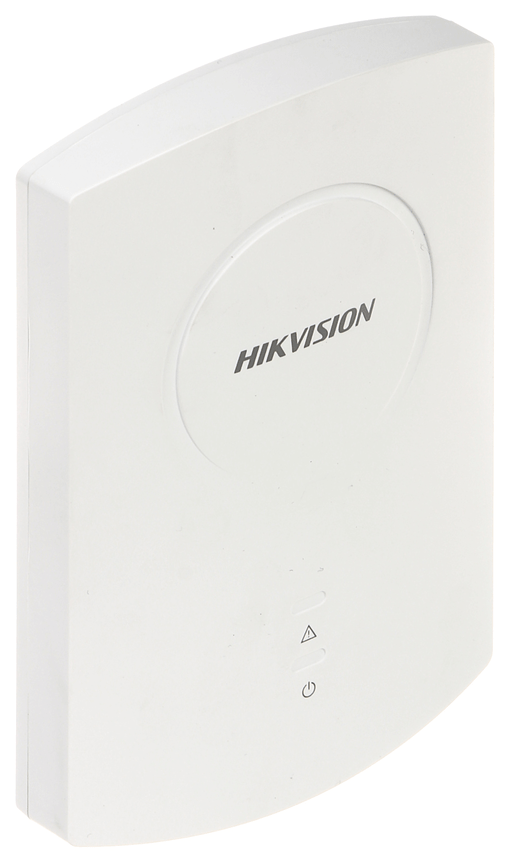

WIRELESS EXPANDER DS-PM-WO2 Hikvision Specifications:

Overview

The Wireless Expander DS-PM-WO2 by Hikvision is an advanced device designed to enhance and extend the capabilities of security systems. As part of Hikvision’s innovative range of products, this wireless expander serves as a crucial component for integrating wireless detectors and peripherals within a security setup.

Offering seamless integration and compatibility with Hikvision’s security ecosystem, the DS-PM-WO2 facilitates the expansion of wireless communication between sensors, detectors, and the central control panel. It operates on reliable wireless protocols, ensuring stable and secure connectivity across the system.

Equipped with cutting-edge technology, this expander supports a wide array of wireless devices, enabling users to effortlessly expand their security networks without the need for extensive cabling. Its user-friendly interface and intuitive configuration options simplify the installation and setup process, making it accessible even for users with limited technical expertise.

Key Features

• Wireless Signal Boost: Amplifies and extends the range of wireless signals for increased coverage.
• Seamless Integration: Effortlessly integrates into existing Hikvision wireless security systems.
• Plug-and-Play Setup: Simple installation process for quick deployment.
• Reliable Connectivity: Ensures stable and consistent connections between devices.
• Compact Design: Space-efficient device suitable for various installation scenarios.

Specifications

Hardware Features

Tamper-Proof: Front and rear

Power Switch: 1 onboard switch for turning on/​off LED

Electrical Characteristics

Power Supply: 9 to 15 VDC

Operation Humidity: 10% to 90% (non-condensing)

Operation Temperature: –10 °C to 55 °C (14 °F to 131 °F)

Wireless Transmission

RF Speed: 4.8 kbps

*RF Frequency: 868MHz

RF Distance: 800 m (open area)

Display

Indicator 3 LED: power (green), fault (orange), signal strength (green & orange)

General

Installation Method: Wall mounting

Dimension(WxHxD): 160 mm × 105 mm × 28 mm (6.29″ × 4.13″ × 1.10″)

Application Scenario: Indoor

Shell Material

PC + ABS: 165.0 g

Device Management

Alarm Output: 2-ch, capacity: 30 VDC/1 A

Relay Output: 2, NO/NC

See Datasheet
