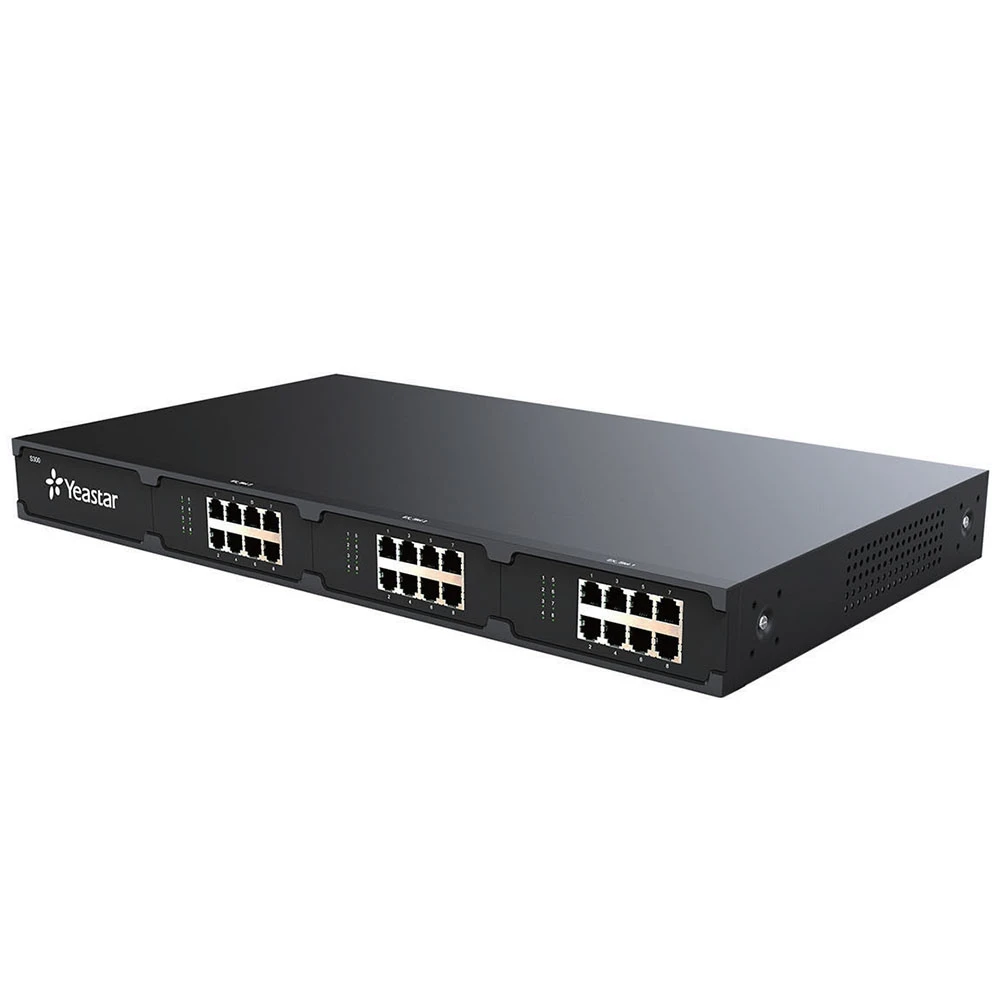

Yeastar S300 300 Users 60 Concurrent Calls Modular IP PBX description

Features

• • Appreciate the Easy-to-use Solution: The S-Series features fast installation with comprehensive auto provisioning, advanced plug and play capability, together with an intuitive Metro UI driven by point-and-click configuration, from any location.
• • Your Choice of Technologies and Features: With a unique modular design, the S-Series will install into the most demanding of environments. You can also take advantage of advanced enterprise-grade features with the fullest and most complete software versions.
• • Telephone System without Risk: S-Series is built with the future in mind, utilizing the latest technology advances, from Freescale industrial grade Quad Core processors, TI DSP voice processors, and long-life power units and lightning protection.
• • Play Safe and Expect Reliability: With advanced failover, security, monitoring, and reporting capabilities as standard, combines with an internal firewall and with support for TLS and SRTP encryption, there has never been such a robust system.

Benefits

•  Works with SIP/IAX2, PSTN lines, ISDN BRI, E1/T1/PRI, and GSM/CDMA/3G
•  Built-in call recording capability
•  Powerful Apps (add-ons) include Auto Provision, LDAP, and more coming soon
•  Free lifetime software/firmware upgrade and above all, it’s super easy
•  Connect multiple sites and remote users instantly
•  No hidden charges and extra licensing fees
•  Low power consumption (1.8 to 59.1 W)

specs

•  Users: 300 (up to 500)
•  Max Concurrent Calls: 60 (up to 120)
•  Max Analog Ports: 24
•  Max BRI Ports: 24
•  Max Cellular Ports: 6
•  Max E1/T1/J1 Ports: 3
•  VoIP Trunks: 100
•  Protocol: SIP (RFC3261), IAX2
•  Transport Protocol: UDP, TCP, TLS, SRTP
•  Codec: G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, Speex, ADPCM, iLBC, H.263, H.263P, H.264, MPEG4
•  DTMF: In-band, RFC4733, RFC2833, SIP INFO
•  LAN: 1 x 10/100/1000 Mbps
•  WAN: 1 x 10/100/1000 Mbps
•  IP Services: Static IP, DHCP, VPN, Firewall, VLAN, DDNS, PPPoE, QoS, Static NAT,STUN
•  Voicemail: 10000 min (expandable)
•  Firewall: Yes
•  T.38 Fax: Yes
•  App Center: Yes
•  External Storage: SD card and 2.5″ SATA HDD
•  USB: 1
•  Power: AC 100-240V 50/60Hz 1.8A max
•  Size: 44 x 25.2 x 4.4 cm (17.3 x 9.9 x 1.7″)
•  Weight: 2.6 kg (5.73 lbs)
•  Power Consumption: 6.2 to 59.1 W
•  Environment:
  Operation Temperature: 0 to 40°C (32 to 104°F)
  Storage Temperature: -20 to 65°C (-4 to 149°F)
  Humidity: 10 to 90% non-condensing
  • Mounting: 1U Rack-Mount
