DMC-300SC 10/100 to 100BaseFX (SC) Multimode Media Converter Specifications and Details

Overview

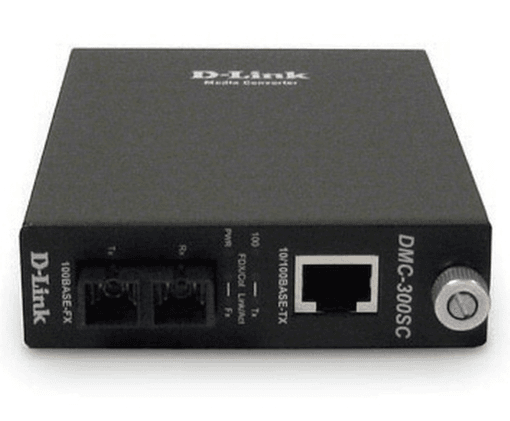

The D-Link DMC 300 MSC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. The DMC-300SC complies with the IEEE 802.3 and 802.3u standards and works with multimode fiber cables that use the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire speed forwarding rate. This module offers several features, including standalone functionality without requiring a chassis, Auto MDI/MDI-X, automatic speed and duplex mode negotiation on the twisted pair port, and front panel status LEDs. The DMC-300SC will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers.

Features

1. Compatible with D-Link Devices: This media converter is designed to work seamlessly with other D-Link networking equipment. It ensures compatibility and interoperability within your D-Link network, providing a cohesive and integrated networking solution.
2. Reliable Data Transmission: Benefit from reliable and high-speed data transmission facilitated by the use of fiber optics. This is particularly crucial for applications that demand high bandwidth and low latency.
3. Energy-Efficient Operation: The media converter is designed with energy efficiency in mind, consuming minimal power during operation. This contributes to a more sustainable and cost effective network infrastructure.
4. Whether you’re extending network connectivity between buildings or incorporating fiber optics into your existing network, this media converter offers a cost effective and efficient solution for optimizing your network capabilities.

Tech Specifications

LED Indicators

• Power
• 100Mbps Speed (for twisted pair port)
• Full Duplex/Collision (for twisted pair and fiber ports)
• LINK/ACT (for twisted pair port)

Dimensions

• 120 x 88 x 25 mm

Power Input

• 7.5V 1.5A
• Through external AC power adapter

Operation Temperature

• 0° –  40° C

Storage Temperature

• -25° –  70° C

Humidity

• 10  ~  90% non condensing

Emission (EMI)

• VCCI Class B
• CE Class B
• C-Tick

See Datasheet
