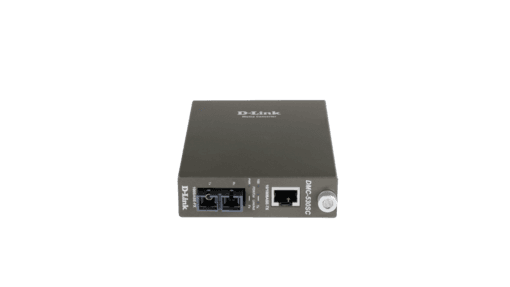

DMC-530SC 10/100BASE-TX Twisted Pair to 100BASE-FX Single-mode fiber (30 km, SC) Media Converter Module Specifications and Details

Overview

These converters convert 10/100Mbps 10BASE-T/100BASE-TX Fast Ethernet twisted pair signals to 100BASE-FX Fast Ethernet single mode fiber signals. Maximum fiber cable distance is 15 – 60 km. 1 RJ-45 twisted pair port and 1 fiber port (SC connector) are provided.

– DMC-530SC: this media converter supports a maximum 30km fiber cable distance.

Features

1. LED Indicators for Status Monitoring: The media converter is equipped with LED indicators that provide at a glance information about the device’s status. Monitor power, link or activity, and collision status effortlessly, allowing for quick diagnostics and troubleshooting
2. Compatible with D-Link Devices: This media converter is designed to work seamlessly with other D-Link networking equipment. It ensures compatibility and interoperability within your D-Link network, providing a cohesive and integrated networking solution.
3. Reliable Data Transmission: Benefit from reliable and high speed data transmission facilitated by the use of fiber optics. This is particularly crucial for applications that demand high bandwidth and low latency

Tech Specifications

General features

Number of Ports

• 1 x 10/100BASE-TX RJ-45 port
• 1 x 10/100BASE-FX SC port

Standards

• IEEE 802.3 for 10BASE-T/F
• EEE 802.3u for 100BASE-TX/FX

Data Transfer Rate

• Ethernet: 10 Mbps/20 Mbps (half duplex and full-duplex)
• Fast Ethernet: 100 Mbps/200 Mbps (half duplex and full duplex)

Duplex Mode

• Half-duplex/full-duplex

Media Types

• 10BASE-T: 2-pair Cat. 3/4/5/5e, Unshielded Twisted Pair (UTP) (up to 100 m)
• 10/100BASE-TX: 2-pair Cat. 5/5e, Unshielded Twisted Pair (UTP) (up to 100 m)
• 100BASE-FX: Multi-mode fiber optic cable with SC connector (up to 2 km)

Media Exchange Interface

• Auto-MDI/MDIX

Functionality

Transmission Mode

• Store-and-forward

Forwarding Rate

• Full wire-speed forwarding rate

Management

• Through the DMC-1000 chassis with the DMC-1002 management module installed

Management Functions

• Fiber port duplex mode

Physical

Diagnostic LEDs

• Power
• Speed (for twisted pair ports)
• Full-duplex/Collision (for twisted pair and fiber ports)
• LINK/ACT (for twisted pair ports)

AC Input

• 5 V/1 A external power adapter

Temperature

• Operating: 0 °C to 40 °C (32 °F to 104 °F)
• Storage: -25 °C to 70 °C (13 ºF to 158 °F)

Humidity

• 10% to 90% RH, non condensing

Dimensions

• 120 x 88 x 25 mm (4.72 x 3.46 x 0.98 in)

Weight

• 292 g (0.64 lbs)

Fiber Wavelength

• 1310 nm

Supported Fiber Cable Length

• Up to 30 km

Emission Certifications (EMI)

• FCC Class A
• VCCI Class A
• CE Class A
•
