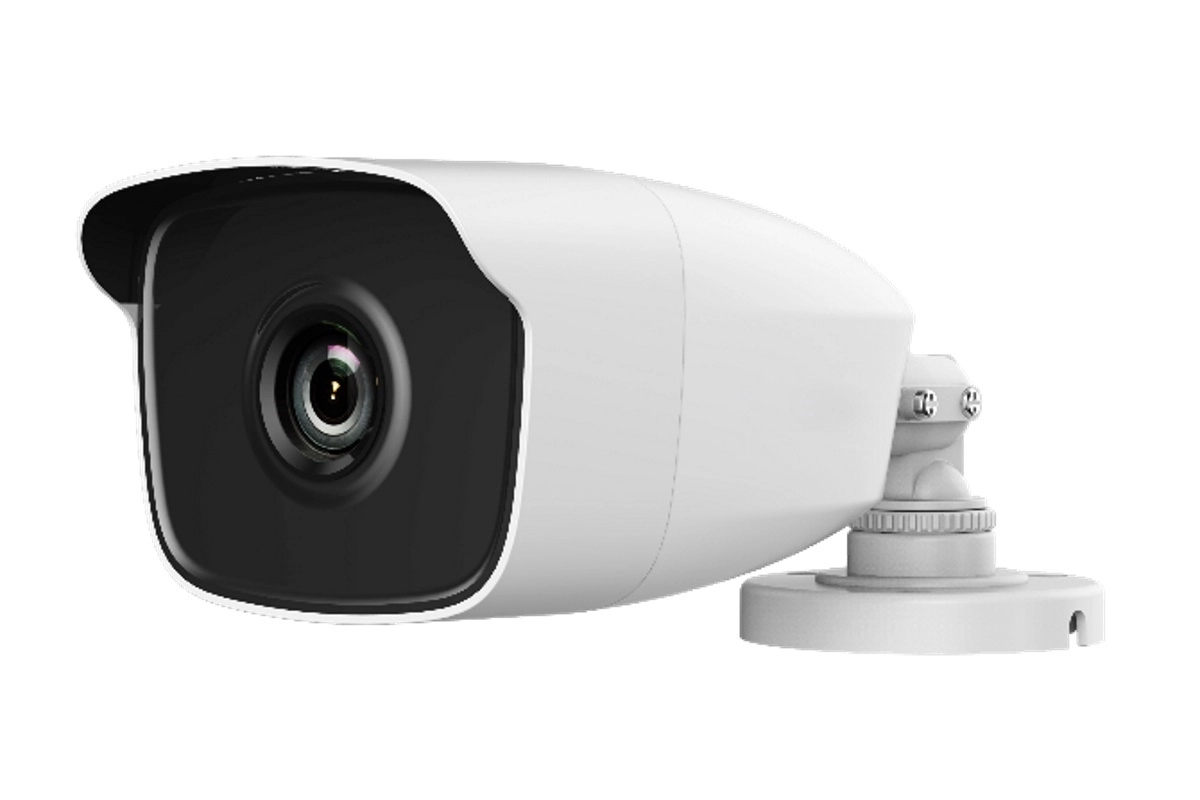

Hikvision HiLook IPC-B121H-M 2MP Mini Bullet Camera Description,
The Hikvision HiLook IPC-B121H-M 2MP Mini Bullet Camera is a 2 megapixel (1920 x 1080) fixed lens true day/night bullet camera with Digital WDR. The camera has built in IR with a range of up to 30m and is housed in an IP67 rated housing. Some of the great features this camera includes are region of interest, day/night function and digital wide dynamic range. The camera can be powered over ethernet (PoE) for quick and easy installation when used with the plug and play features of our HiLook by Hikvision NVRs.
This is one of the new H.265 models saving you considerable bandwidth and recording space in comparison to the older H.264 models.
Key Features
- 2 megapixel (1920 x 1080) high resolution
- 1/2.8” progressive scan CMOS
- 2.8mm Lens – Horizontal FOV 114.8°
- Digital Wide Dynamic Range
- 3D DNR (Digital Noise Reduction)
- up to 30m IR
- PoE
- IP67
Specifications
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/3s ~ 1/100,000s |
| Lens | 2.8mm @ F2.0 – horizontal field of view 114.8° |
| Lens Mount | M12 |
| Day & Night | ICR |
| IR Range | up to 30m |
| Adjustment Range: (Manual) | Pan:0° – 360°, Tilt: 0° – 180°, Rotation: 0° – 360° |
| Digital noise reduction | 3D DNR |
| WDR | Digital WDR |
| Compression Standard | |
| Video compression | Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit rate | 32 Kbps ~ 8 Mbps |
| Smart Feature-set | |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Image | |
| Max. Image Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps(1920×1080 / 1280×960 / 1280×720) |
| Sub Stream | 50Hz: 25fps(704×756 / 640×480 / 320×240) |
| Image Enhancement | BLC, 3D DNR |
| Image settings | Saturation, brightness, contrast, sharpeness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Alarm trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| System Compatibility | ONVIF (Profile S), ISAPI |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Interface | |
| Communication interface | 1 RJ45 10M / 100M Self adaptive Ethernet port |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% , PoE (802.3af, class 3) |
| Power Consumption | Max. 4.5W |
| Ingress Protection | IP67 |
| Material | Metal |
| Dimensions | Φ70 x 181.6mm |
| Weight | Approx. 390g. |
