FIBRE OPTIC LASER PEN SPECIFICATIONS AND DETAILS

Overview

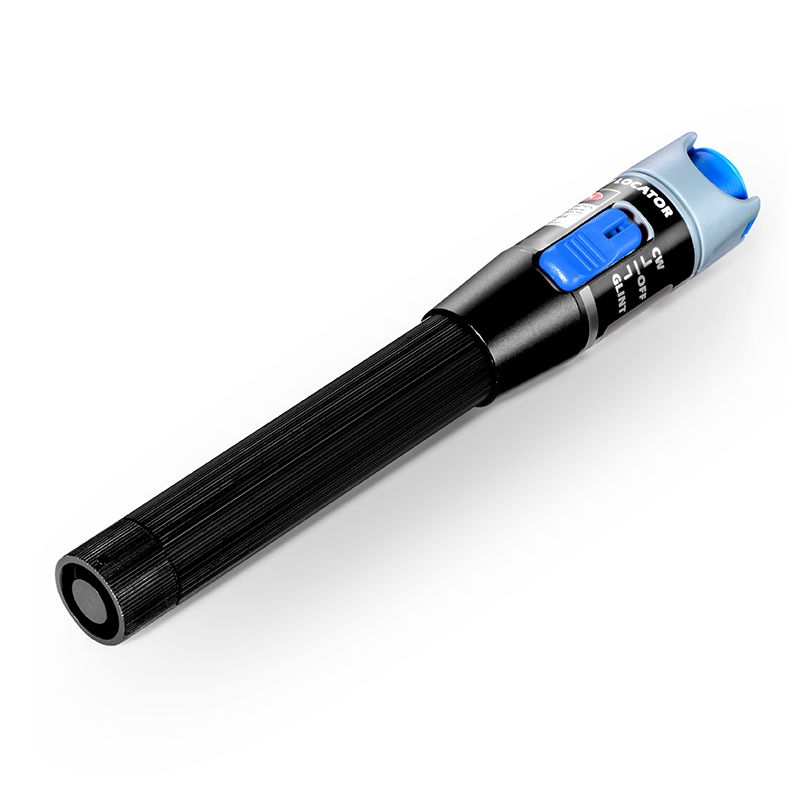

Pen-type VFL Fber Optic Visual Fault Locator / Visible Red Laser Source Laser Pen

RZ305P Pen-type VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes:

• Finding the breakpoint, poor connections, bending or cracking in fiber optic cables
• Finding the faults of OTDR dead zone
• End-to-end visual fiber identification

About this Item

• Long Output Distance: This visual error locator has a strong output from the battery, which can travel 20 to 30 kilometers. The efficient circuit makes the current stable.
• 2.5mm Universal Connector:2.5mm universal connector of optical cable tester is compatible for ST, SC and FC, interfering with both a circle and square shape of different fiber optic cables.
• FC/LC adapter: included single mode 9/125UM SC male to LC adapter and FC male to female, compatible with 30MW optical power meter visual error locator.
• Accurate Tester: The fibre defect locator can accurately detect and locate fibre breaks, poor connections, bending or cracks. So you can and repair errors with this fibre cable tester tool.
• PORTABLE FIBER TESTER:Small and portable, easy for field testing with multiple functions such as lower battery warning, long battery life, constant output power and long distance detection.

Highlights

• 2.5mm universal connector, for 1.25mm connectors
• FC (Male)-LC (Female) convertor can be provided on requests
• Operates either in CW or Pulsed
• Constant output power
• Lower Battery warning
• Long battery life (up to 60 hours)
• Crash-proof and dust-proof design for laser head
• Laser case ground design prevents ESD damage
• Burning testing to ensure the reliability
• Portable and rugged, easy to use
• Guarantee to CE standards include EMC, EMI, ROHS

Tech Specification
